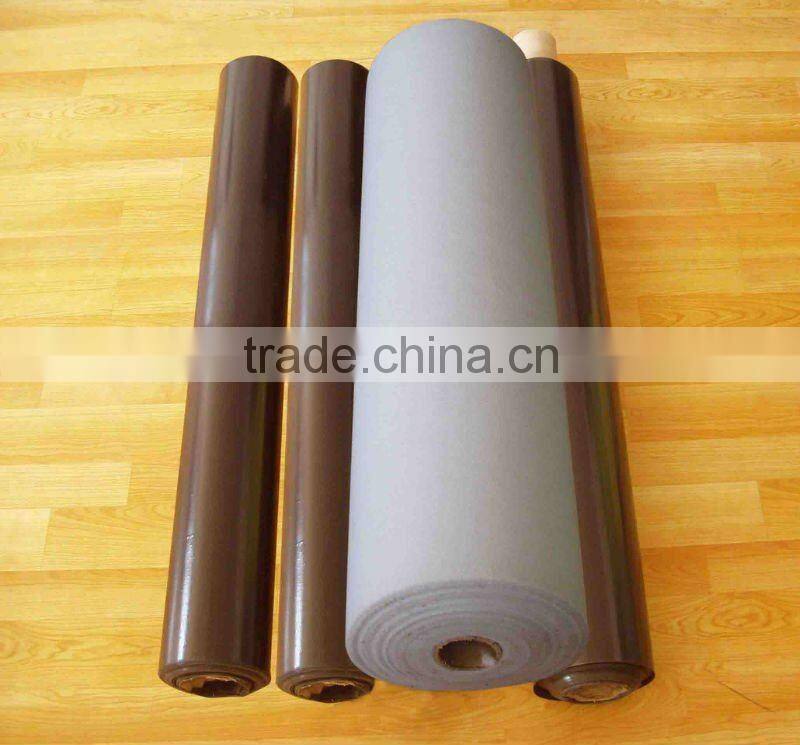

Composite HDPE Geomembrane for Construction

FOB Price

Negotiable / Square Meter

5000 Square Meters(Min. Order)

Port qingdao
Payment TermsT/T Money Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China		Brand Name	jinlong waterproof
Model Number	geo-an		Material	HDPE

Product Description

1 how to use waterproof material composite HDPE geomembrane for construction

The Companys production in line with the main geomembrane to acupuncture as a geotextile fabric can also be based on user requests the production of weaving machines, plastic composite products.

2. Product specification

1one cloth and one film Base fabric 100-1000 g /m2

Membrane thickness 0.1-1.5 mm
2two cloth and one film Base fabric 80-600 g /m2

Membrane thickness 0.2-1.5mm
3. Feature and usage of composite membrane
As a result of use of geotextile composite geomembrane (weaving machines or plastic woven cloth) for fabric, it has a geotextile In addition to isolation, drainage, reinforcement, protection, and other things have also closed (anti-) function can be widely used and Water dams, roads, airports, water, housing, environmental protection, and many other fields in engineering from the main anti-business, protection, strengthening the role and so on.

Tensile at break kN/ m	5	7.5	10.0	12.0	14.0	16.0	18.0	2.0	MD/CD
Elongation %	30~100
CBR strength kN	1.1	1.5	1.9	2.2	2.5	2.8	3.0	3.2	3.0
Tear strength kN	0.15	0.25	0.32	0.40	0.48	0.56	0.62	0.70	MD/CD
Racking strength N/cm	≥6
Note: According to the specifications of thickness per unit area, the actual specifications in the range of specifications between the adjacent table, according to the interpolation method to calculate the appropriate evaluation indicators; beyond the scope of the table, the assessment indicators to be negotiated by the supply and demand.

Hydrostatic pressure tolerance specification data:

Thickness of membrane mm	0.2	0.3	0.4	0.5	0.6	0.7	0.8	1.0
One textile one membrane mm	0.4	0.5	0.6	0.8	1.0	1.2	1.4	1.6
Two textile one membrane mm	0.5	0.6	0.8	10.	1.2	1.4	1.6	1.8
