Heavy Duty Double Girder Travelling Gantry Crane for Store Yard
- Qingdao Shanghai Guangzhou Port or as requested
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
High Quality Double Girder Travelling Gantry Crane
-
Electric Remote Control Single Girder Gantry Crane with Overload Limit Switch
-
40~60 Ton Remote Control Single Girder Gantry Crane with Hook
-
40 ~ 60 Ton Electric Workshop Single Girder Gantry Crane with CE
-
Lifting Machinery Electric Single Girder Gantry Crane with Hook
-
High Quality Lifting Machinery Single Girder Gantry Crane 60 Ton
Product Details
| Condition | New | Application | Outdoor | |
| Rated Loading Capacity | 100ton | Rated Lifting Moment | 1000KN | |
| Max. Lifting Load | 100t | Max. Lifting Height | 3-20 Meters | |
| Span | 12-30m | Place of Origin | Henan, China | |
| Brand Name | Hercules | Model Number | RTG | |
| Certification | SGS | Warranty | 2 Years | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

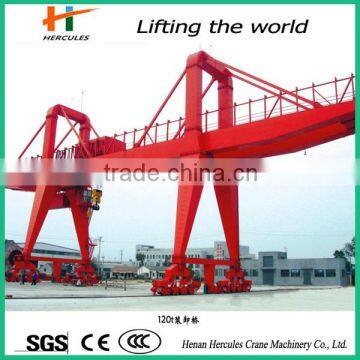

Heavy Duty Double Girder Travelling Gantry Crane for Store Yard
A-Type double girder gantry crane is applied outside warehouse or railway sideways to do common lifting and unloading works. This kind of crane is composed of bridge, supporting legs, crane travelling organ, trolley with strong lifting winch, electric equipment and control system. As its heavy duty design, it can be widely used in all kinds of industrial field.
Technical Specification
Type | A-Type Double Girder Gantry Crane with Hook Cap 5-320t | |||||||||
Capacity(t) | Main | 10 | 16 | 20 | 32 | 50 | 75 | 100 | ||
Aux | 3.2 | 5 | 5 | 10 | 20 | 20 | ||||
Span | 18; 22; 26; 30; 35 | 30,35 | 40 | 16 | ||||||
Hoisting height(m) | Main | 11 | 12 | 12 | 12 | 22 | 22 | 17.5 | ||
Aux | 16 | 14 | 14 | 24 | ||||||
Hoisting speed | Main | 7.4 | 9.4 | 5.8 | 7.7 | 7.68 | 6.25 | 4.62 | ||
(m/min) | Aux | 11.2 | 12.6 | 15 | 19.8 | 9.28 | 9.28 | |||
Hoisting motor | Main | YZR200L-8/15 | YAR225M-8/22 | YAR250M1-8/30 | YAR280M-8/55 | YZR315S-10/63 | YAR315M-10/85 | YZR315M-10/85 | ||
Aux | YZR160L-6/11 | YZR160L-6/15 | YZR180L-6/15 | YZR250M-8/35 | YZR250M1-8/35 | YZR250M1-8/35 | ||||
Crane Rail Recommended | 43kg/m 43kg/m 50kg/m Qu80 | Qu80 | ||||||||
Power source | Three phase AC 380V 50Hz | |||||||||
Pre-sale services: We can provide you with project design, process design, suitable purchase program for your equipment.Also design and manufacture products based on your specific needs, to train your technical personnel.
Sale: We will accompany you to complete the equipment inspection, construction plan and assist in the development process in detail.
After Sale Service: We send technicians to the scene to guide the equipment installation, commissioning and training your operating personnel.
Our company is mainly engaged in manufacturing Excavator standard buckets, Reinforced buckets, Rock buckets, Clamshell buckets, Tilt buckets, Skeleton buckets, Grapples, Excavator rakes, Mechanical grabs, Hydraulic grabs, Long reach booms, Three section booms,Quick couplers, Rippers, Bucket teeth, Forks for forklift, Hydraulic vibrating hammers and other parts of machinery. Our factory covers an area of 38000 square meters. As professional engineering machinery accessories supplier, we provide high quality products and excellent services for a variety of dock, subway construction, river cleaned, building dismantlement, municipal engineering and other large projects. Our products are exporting to more than 40 countries and regions.
(1).What is the lifting capacity?
(2).What is the lifting height?
(3).What is the power supply in your country?
(4).Is there any other special requirements?
