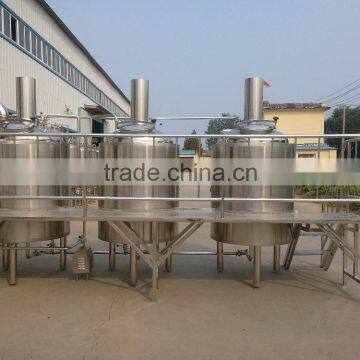

Hot sale 500L Largre Beer Brewery Equipment/home brewery

Mash system

01.Mash & Lauter Tank

Inner(SUS304),thickness:3.0mm; External-Jacket

(Stainless steel), thickness: 1.5mm;

Cylinder (sharp type, SUS), thickness: 1.5mm.

Inner surface treatment: welds grinded to Ra 0.6µm.

Insulation: Polyurethane-thickness 80 mm.

02.Boiling &Whirlpool

Tank

03.Hot water tank

04.Mill machine

200Kg/h;Power: 3kw, voltage:380V

05.Boiler water treatment

1000kg/h;heating;water pump power:1.5kw

06.steam generator

50kg/h;Steam temperature: 151-170°C

07.Wort pump

3000L/h;Power:0.75KW, lift15m, Rev:2880r/min

08.Plate Heat exchanger

10Square meters;exchange board material SS304

09.Pipeline & Valve VLV

SUS304 ;single surface weld & double surface forming, no dead angle

10.Wort measuring meter

Stainless steel

11.Venturi tubes

Stainless steel; Heating exchanger wort export

13.Saccharometer

Glass

14.Rake

SUS304 Lees out rake

15.Operation platform

Stainless steel

Fermentation system

01.Fermentation tank

Inner(SUS304),2.5mm;Jacket-1.5mm;welds grinded to Ra 0.4µm (attached all-sided cleaning ball);

Polyurethane-thickness 80 mm;cone 75°resist compression design,SUS miller board temperature drop.

02.Yeast adding tank

Stainless steel 304

03.Food tube

Include tube Joints and hose hoops

04.Refrigerant pipelines

PPR/ Stainless steel

05.Keep warm tube

polyethylene

06.Electromagnetic put air out

1 piece

07.Electronic gauges

According to the fermenters quantities

Cooling system

01.Ice water tank

Material: Inner(SUS304),thickness:2.5mm;External-Jacket(Stainless steel);

Insulation: Polyurethane-thickness 80 mm.

02.Refrigerating unit

Capacity: 9000 kilocalorie; medium:Freon 22

03.Circulate pump

carbon steel

04.Pipeline& Valves

PPR/ Stainless steel

 Control system

01.Mashing control

Three methods:Manual control

Semi-automatic control

Full-automatic control (PLC)

02.Fermenting control

03.Cooling control

04.Cleaning control

 Cleaning system

01.Washing pump(moving)

Stainless steel

02.Alkali tank

Stainless steel

03.Sterilization tank

Stainless steel
