ZS Series Engines Power,Single Cylinder Block Diesel Engines
US$ 300 - 350
/ Set
1 Set(Min. Order)
- QINGDAO
- T/T D/P D/A Money Gram
You May Like
Product Details
| Type | DIESEL ENGINE SERIES | Use | ENGINE | |
| Certification | BV | Place of Origin | Shandong, China | |
| Brand Name | SANGAO | Model Number | ZS1105 | |
| Condition | New | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
SINGLE CYLINDER BLOCK DIESEL ENGINE SD1115
| MODEL SD1115 | |
| Number of cylinder | 1 |
| Cylinder diameter×piston stroke | 115x125(mm) |
| Compressure ratio | 17.5:1 |
| Rated power(kw/hp) | 17.65/24 |
| Running speed(r/min) | 2200 |
| Fuel consumption(g/kw.h) | 250.2 |
| Lub.oil consumption(g/kw.h) | 2.3 |
| Net weight(kg) | 185 |

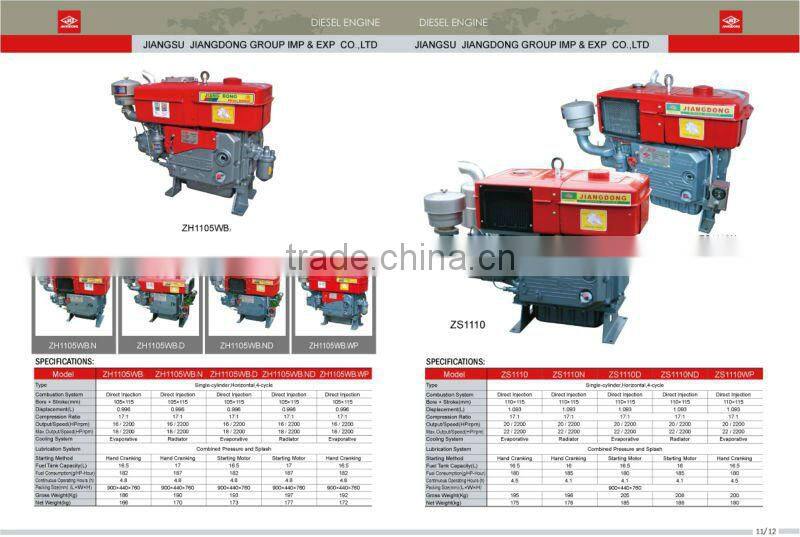

SINGLE CYLINDER BLOCK DIESEL ENGINE SD1100,SD1105,SD1110.SD1115,SD1125,LD1110,LD1115,KM130,KM138.
| model | unit | sd1100 | sd1100b | sd1105 | sd1110 | sd1115 | sd1125 | sd1130 | JSD1800 | JSD3200 | KM130 | km138 | |
| specifications | |||||||||||||
| type | horizontal type ,single,cylinder,four-stroke,water-cooling | ||||||||||||
| cylinder diameter x stroke | mm | 100x115 | 100x115 | 105x115 | 110x115 | 115x125 | 125x120 | 130x120 | 135X130 | 150X120 | 118X118 | 122x118 | |
| displacement | l | 0.903 | 0.903 | 0.996 | 1.093 | 1.298 | 1.473 | 1.593 | 1.86 | 3.711 | 1.29 | 1.38 | |
| model of combustion chamber | swirl chamber | direct-injection | DIRECT INJECTION | direct-injection | |||||||||
| compressure chamber | 20 | 20 | 16.5 | 16.5 | 17.5 | 6.5 | 16.5 | 15.5 | 16 | 17 | 17 | ||
| power | 1hour power | kw/r(min) | 12.1/2200 | 12.1/2200 | 13/2200 | 14.7/2200 | 17.6/2200 | 20.2/2200 | 22/2200 | 16.2/1500 | 28/1100 | 17.6/2200 | 18.4/2200 |
| 12 hour power | kw.r(min) | 11/2200 | 11/2200 | 11.76/2200 | 13.2/2200 | 16.2/2200 | 8.8x2200 | 20.2/2200 | 15.5/1500 | 32/1100 | 16.2/2200 | 17.6/2200 | |
| specific fuel consumption | g.kw.h | ≤262.5 | ≤262.5 | ≤250.2 | ≤250.2 | ≤250.2 | ≤250.2 | ≤250.2 | ≤250.2 | ≤145. | ≤242.1 | ≤242.1 | |
| specific oil consumption | kg/h | ≤.03 | ≤.03 | ≤.032 | ≤.036 | ≤.044 | ≤.05 | ≤.055 | ≤.042 | ≤.044 | ≤.048 | ||
| max torque | n.m | ≥53.4 | ≥53.4 | ≥57.1 | ≥64.1 | ≥78.7 | ≥89.4 | ≥98.2 | ≥110.5 | ≥85.6 | ≥89.4 | ||
| injectiong pressure | mpa | 17.76 | 17.76 | 18.13 | 1.13 | 19.8 | 19.5 | 19.5 | 19.8 | 20±0.5 | 20±0.5 | ||
| lubricating type | force and splash | ||||||||||||
| cooling method | water-cooling | ||||||||||||
| starting method | cranking or electric starting | ||||||||||||
| net weight | kg | 165 | 165 | 170 | 180 | 185 | 240 | 240 | 300 | 788 | 190 | 190 | |
| overall dimension l x w x h | mm | 782x536x596 | 782x510x596 | 756x510x593 | 814x545x627 | 814x538x647 | 857x555x779 | 814x545x627 | 960X560X700 | 762X548X893 | 762x548x893 | ||
