Home > Products > Solar charge controller > PWM Solar charger controller 5A, 10A, 15A, 20A, 25A, 30A

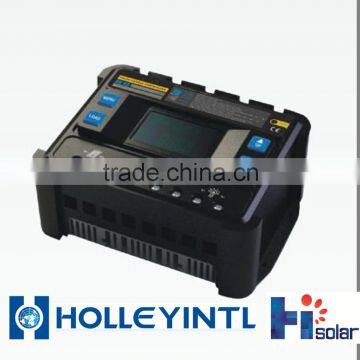

PWM Solar charger controller 5A, 10A, 15A, 20A, 25A, 30A

FOB Price

USD $15 - $70 / Piece

250 Pieces(Min.Order)

Supply Ability 0 per Month
Port SHANGHAI / NINGBO
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	HOLLEY
Model Number	HCP 12/24-5/10/15/20/25/30	Application	Solar System Controller
Rated Voltage	Other, 12/24/48Vdc	Maximum Current	5A, 10A, 15A, 20A, 25A, 30A

Product Description

PWM Solar charger controller 5A, 10A, 15A, 20A, 25A, 30A.

Features:

Overcharge protection.

Short circuit protection (automatic restoration).

Easy to install and use.

Save energy and electricity consumption.

Environment friendly, lower-cost. Suitable for polytype battery.

Thunder protection. Reverse polarity connection protection.

Detailed Images

Technical data

Model	HCP 12/24-5	HCP 12/24-10	HCP 12/24-15	HCP 12/24-20	HCP 12/24-25	HCP 12/24-30
Model						HCP 48-30
Charging Mode	PWM
Nominal System Voltage	12/24V					12/24,&48V
Rated Charge Current	5A	10A	15A	20A	25A	30A
ated Discharge Current	5A	10A	15A	20A	25A	30A
Max PV Input Power	75W@12V 150W@24V	150W@12V 300W@24V	225W@12V 450W@24V	300W@12V 600W@24V	360W@12V 720W@24V	450W@12V 900W@24V 1800W@48V
LCD Screen Display	Optional
Equalizing Charge Voltage	14.4V/28.8V/57.6V
Boost Charge Voltage	14.0V/28.OV/56.0V
Float Charge Voltage	13.8V/27.6V/55.2V
Over Voltage Protection	15.5V/31.0V/62.0V
Low Voltage Disconnect	11.0V/22.0V/44.0V
Low Voltage Recovery	12.6V/25.2V/50.4V
Self Consumption	<5% of rated power
Temper. Compensation	-3mV/℃/2V
Ambient Temper. Range	-25 to 50℃
Protection Level	IP 22
Battery Type	GEL/AGM/Solar Storage Battery, etc.

30A mppt hybrid solar charge controllers MPPT-30AD.

Rated Voltage: 12V/24V/48V
Maximum Current: 30A

30A 12V/24V/48V lithium battery solar charge controller.

Rated Voltage: 12V/24V/48V
Maximum Current: 30A

10A mini pwm solar charge controller.

Rated Voltage: 12/24V
Maximum Current: 10A

Certifications

Packing & Delivery

Our Company

HOLLEYINTL, is a top-brand enterprise in China, is a professional diversified operating company specializing in international trade and overseas projects. We have been engaged in export and import of utility meters, new energy and natural resource products as well as overseas engineering EPC and investment. Meanwhile, our company is also the inverter,controller manufacturer; PV system integrator and photovoltaic power plant investment operator.

We actively carrying out the internationalization strategy and extending the domestic and overseas markets, have made great progress in the field of new energy and completed a number of photovoltaic system projects in Ethiopia, Uganda, Palestine as well as other countries, and initially formed the core competence both in PV system integration capabilities and customer service network.

As one of our global strategies, we are aiming to be an global excellent integrated expert in new energy field. We specialize in providing design, supply, installation, commissioning, after-sales service and project finance support of overseas new energy projects and our products have been spread all over Africa, Asia and South America.
