TKG2 Metallic Tube Filling & Sealing Machine
- Shanghai/Ningbo
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Condition | New | Application | Beverage, Chemical, Commodity, Food, Medical, Other, Beverage, Chemical, Commodity, Food, Medical, hair dyes,shampoo, metal tube | |
| Packaging Type | Other, metal tube | Packaging Material | Metal, Plastic | |
| Automatic Grade | Semi-Automatic | Driven Type | Electric | |
| Voltage | 220V±10%50Hz | Power | 1.1kw | |
| Place of Origin | Zhejiang, China | Brand Name | TK | |
| Model Number | TKG2 | Dimension(L*W*H) | 1000*600*1700mm | |
| Weight | 500kg | Certification | ISO9002 | |
| After-sales Service Provided | Overseas third-party support available |
Product Description

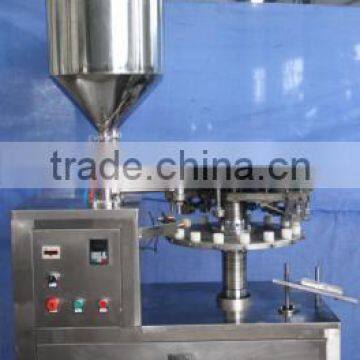

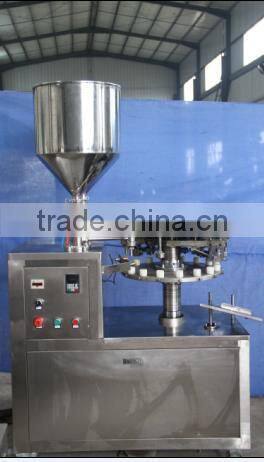

TKG2
Metallic Tube Filling & Sealing Machine is used for fill liquid material into
metal tube with fixed quantity and fold the tube end.It is widely used for the packing
of pharmaceutical, cosmetic, foods and chemical industry.for example:ointment ,
gooey AB glue,super glue,epoxy,skin oil,hair dye,shoeshine,toothpaste,etc.
liquid and poultice materials.
WORK COURSE
Manual insert the metal tube into the index plate tube base(16 place),using the machine drive automatism locomotion,photo electricity inspect that
confirm tube base have tube and then automatism filling the tube,after four-fold sealing.
STRUCTURAL FEATURES
The filling quality easy to adjust,the filling qualify is tunable,
the computation precision is higher,stability is well.If instead pedestal that is apply
the filling and the sealing of the all kinds of metal tubes,sealing figure is beauty
and trim,the sealing is tightness.This machine adopt the high-quality stainless
steel material to make of contacting the material.
Technical data
No. | tem | Values |
1 | Voltage | 220V±10%50Hz |
2 | temperature | 5-50°C |
3 | Filling Volume | 50-130ml |
4 | Filling error | <2% |
5 | Power | 1.1kw |
6 | Compressor | Pressure=0.6-0.7Mpa Air demand≥0.2M/min |
7 | Working Capacity | 10-50pcs/min(Adjust) |
8 | Size | 1000*600*1700mm |
9 | Weight | 350Kg |
