Specifications

Automatical Square Brick Machine

 Main Features of Brick Machine

Professional term introduce:

1.Table vibration:

Brick machine Energy from the vibration table through the pallet to the mixture, make the mixture density.

2.Pressure vibrating:

Pressure head of mould down to the top surface of concrete, at the same time vibration start. The Brick machine work with pressure and vibrating.

3.Feed vibrating:

The Brick machine operates with small vibrating when the material feeding car at the top of the mould frame, let the concrete easy to fall down to the mould frame.

4.Green block:

Block just forming by the Brick machine, without curing.

5.Demoulding:

Separate the finished block produced by Brick machine from the mould.

Five advantages of Automatic Brick machine:

Our Brick machine, with harmonic cooperation between electrical and hydraulic machines functions, guarantee a reliable and high output production of concrete products.

1. The Brick machine use Japan Mitsubishi PLC control system and Delta Touch

A. Screen, use Schneider and Omron relays and contactors:

Mitsubishi PLC, with great adaptability, guarantees the stability and reliability of the Brick machine;

B. Deltan touch screen, with easy operation;

C. High-quality electrical components from Schneider and Omron;

2. The Brick machine use Frequency Conversional Control Technology, which controls the Brick machine:

A. Frequency Conversion Control: Our Brick machine guarantees the precise and parallel movement between tamper head and mould, protects the products from transfiguration; increases the production rate by improving the vibrating efficiency;

B. Frequency controlled vibration: controls the instantaneous start and stop of the motors, to protect the motor from over-heating caused by constant working;

C. Our Brick machine Power saving: 30%;

3. The Brick machine use Double high-dynamic Proportional/Directional Valves to automatically adjust the oil flow and pressure

A. Buffer the hydraulic cylinder, to protect the cylinder from damage caused by inertia;

B. Guarantee production stability;

4. The Brick machine 360° Multi-Shaft Rotating and Compulsory Feeding:

A. Speedy and rotating feeding, with uniform mixing, to make sure that the density and intensity of the products are guaranteed;

B. This uniform feeding is applicable for different kinds of raw materials and moulds;

5. The Brick machine use heat treatment on moulds and main parts of the Brick machine:

A. Heavy duty machine structure and wear resistant moulds;

B. The hardness reaches up to HRC 52;

C. Greatly improves the using lifetime of the Brick machine by 50%.

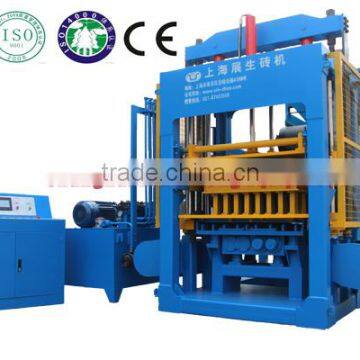

Machine Picture

 Block Making Machine Production Line

 Actual Block Making Machine Line

  Workshop

 Our Block Making Machine Customers

 The Production and raw materials of Block Making Machine

   Dear customer, if you are interested in our Block Making Machines, please kindly tell me the size of the block/brick/pavers you want to produce, and the production capacity per day/year, then I can recommend a suitable model to you. Welcome your contact!
