Fabricas de mayas de construccion for concrete tile and small cement block making machine factory

Specifications

              Fabricas de mayas de construccion for concrete tile and small cement

                                        block making machine factory

 Main Features of Block Making Machine

Professional term introduce:

1.Table vibration:

Block Machine Energy from the vibration table through the pallet to the mixture, make the mixture density.

2.Pressure vibrating:

Pressure head of mould down to the top surface of concrete, at the same time vibration start. The Block Machine work with pressure and vibrating.

3.Feed vibrating:

The Block Machine operates with small vibrating when the material feeding car at the top of the mould frame, let the concrete easy to fall down to the mould frame.

4.Green block:

Block just forming by the Block Machine, without curing.

5.Demoulding:

Separate the finished block produced by Block Machine from the mould.

Five advantages of Automatic Block Machine:

Our Block Machine, with harmonic cooperation between electrical and hydraulic machines functions, guarantee a reliable and high output production of concrete products.

1. The Block Machine use Japan Mitsubishi PLC control system and Delta Touch

A. Screen, use Schneider and Omron relays and contactors:

Mitsubishi PLC, with great adaptability, guarantees the stability and reliability of the Block Machine;

B. Deltan touch screen, with easy operation;

C. High-quality electrical components from Schneider and Omron;

2. The Block Machine use Frequency Conversional Control Technology, which controls the Block Machine:

A. Frequency Conversion Control: Our Block Machine guarantees the precise and parallel movement between tamper head and mould, protects the products from transfiguration; increases the production rate by improving the vibrating efficiency;

B. Frequency controlled vibration: controls the instantaneous start and stop of the motors, to protect the motor from over-heating caused by constant working;

C. Our Block Machine Power saving: 30%;

3. The Block Machine use Double high-dynamic Proportional/Directional Valves to automatically adjust the oil flow and pressure

A. Buffer the hydraulic cylinder, to protect the cylinder from damage caused by inertia;

B. Guarantee production stability;

4. The Block Machine 360° Multi-Shaft Rotating and Compulsory Feeding:

A. Speedy and rotating feeding, with uniform mixing, to make sure that the density and intensity of the products are guaranteed;

B. This uniform feeding is applicable for different kinds of raw materials and moulds;

5. The Block Machine use heat treatment on moulds and main parts of the Block Machine:

A. Heavy duty machine structure and wear resistant moulds;

B. The hardness reaches up to HRC 52;

C. Greatly improves the using lifetime of the Block Machine by 50%.

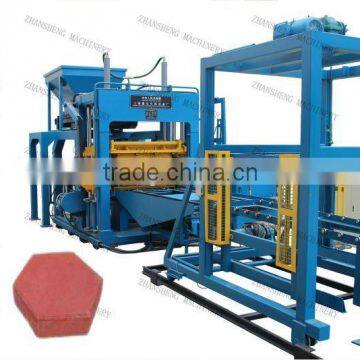

                                                                 Block Making Machine

              Block Making Machine Production Line

                  Actual Block Making Machine Line

                                       Workshop

                                    Our Block Making Machine Customers

The Production and raw materials of Block Making Machine

   Dear customer, if you are interested in our Block Making Machines, please kindly tell me the size of the block/brick/pavers you want to produce, and the production capacity per day/year, then I can recommend a suitable model to you. Welcome your contact!
