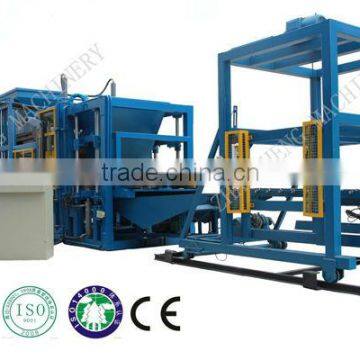

QT 9-15 Slope Protection Cinder Brick Making Machinery Export India

      Main Technical Specifications Of QT 9-15 Block Machine

Production per Mould:

9pcs/mould (Standard Block: 400x200x200mm)

50pcs/mould (Solid Block: 240x115x53mm)

25pcs/mould (Porous: 240x115x90mm)

25pcs/mould (Holland Brick: 200x100x60-80mm)

Cycle Time:

15-17 seconds

Production per Shift             (8 Working Hours):

Hollow Block (400x200x200mm):   15192-17280pcs

Solid Block (240x115x53mm):       84400-96000pcs

Porous (240x115x90mm):            42200-48000pcs

Holland Brick (200x100x60-80mm):  32600-36000pcs

Max. Vibrating Frequency:

3000-4500rolls/minute

Vibrating Force:

80-120 KN

Motors Power:

49.2 KW

Machine Dimensions:

6550X2500x2680mm (excluding electrical control box)

Pallet Size:

1340X680X23mm

Gross Weight:

About12.5T

Raw Materials:

crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes.

Applied Products:

concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.

Applied Fields:

widely used in buildings, road pavings, squares, gardens, landscaping, city constructions, etc.

1. Supervise the construction of foundation which includes electricity, water and other related amenities;

2. Our engineer will help to train the managers and technicians. Course including: factory management, equipment maintenance, quality control, stocking, marketing etc;
3. On-Site Service Engineers for machines installation On-Site training service for production personnel. After-sales Service

1. Set up individual client's archives with all their needs and detailed to be attended;
2. 24 hours technical advices;
3. Frequent and scheduled engineers visiting;
4. Prompt spare parts support from our major cities distribution network.

1.Table vibration:

Energy from the vibration table through the pallet to the mixture, make the mixture density.

2.Pressure vibrating:

Pressure head of mould down to the top surface of concrete,at the same time vibration start.Pressure with vibrating.

3.Feed vibrating:

Small vibrating when the material feeding car at the top of the mould frame,let the concrete easy to fall down to the mould frame.

4.Green block:

Block just forming by the machine,without curing.

Separate the finished block from the mould.
