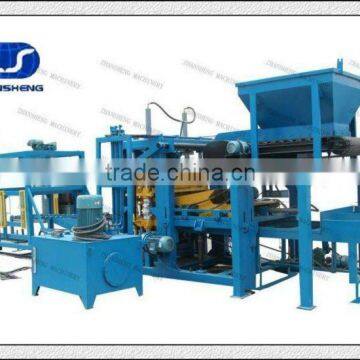

Compressive Strength Brick Machine for sale with High Efficiency ZS-QT8-15

  Main Technical Parameter of ZS-QT8-15 Concrete block making machine

 Overall Size (mm)

3250*2690*2720mm

  Molding Cycle

15-18s

 Power(KM)

46KW

  Area of molding

650*400mm

  height of molding

60-250mm

  Pallet size

1100x680x20-25mm

 Host weight

App. 8.5t

  Master Frequency

3000-4500R/Min

 Rated pressure

16Mpa

 Exciting force

60-80KN

List of Theoretical Production Capacity

 Products

 Specifications

Pc/Mould

Pc/Day

Pc/Year

 Standard Brick

240x115x53mm

40

76,800

23,040,000

 Hollow Block

390x190x190mm

8

15,360

4,608,000

 Multi-hole Brick

240x115x90mm

20

38,400

11,520,000

 Pathway Brick

200x100x60mm

26

34,112

10,233,600

1. Supervise the construction of foundation which includes electricity, water and other related amenities;

2. Our engineer will help to train the managers and technicians. Course including: factory management, equipment maintenance, quality control, stocking, marketing etc;
3. On-Site Service Engineers for machines installation On-Site training service for production personnel. After-sales Service

1. Set up individual client's archives with all their needs and detailed to be attended;
2. 24 hours technical advices;
3. Frequent and scheduled engineers visiting;
4. Prompt spare parts support from our major cities distribution network.

1.Table vibration:

Energy from the vibration table through the pallet to the mixture, make the mixture density.

2.Pressure vibrating:

Pressure head of mould down to the top surface of concrete,at the same time vibration start.Pressure with vibrating.

3.Feed vibrating:

Small vibrating when the material feeding car at the top of the mould frame,let the concrete easy to fall down to the mould frame.

4.Green block:

Block just forming by the machine,without curing.

Separate the finished block from the mould.
