Home > Products > Block Machine Plant > brick paver machine for sale and hydraulic press cement tile
brick paver machine for sale and hydraulic press cement tile
- 80 Set / Sets per Month
- Shanghai Port
- T/T D/P D/A
You May Like
-
interlocking brick mold machine for ecological bricks-hydraulic press eco brava
-
foam brick forming machine
-
ecological brick forming machine for new hollow block
-
machine concrete block making algeria for precast concrete slab
-
soil blocks machine for fully automatic soil brick making machine
-
pavement machine for cement brick and concrete slab
Product Details
Condition | New | Type | Interlock Block Making Machine | |
Brick Raw Material | Cement | Processing | Other, Block Production Line | |
Method | Hydraulic Pressure | Automatic | Yes | |
Capacity | 400*200*200mm 11520bricks/day | Place of Origin | Shanghai, China | |
Brand Name | Zhansheng Hollow Block Making Machine | Model Number | ZS-QT6-15 Hollow Block Making Machine | |
Voltage | 380V | Power | 43.9kw | |
Dimension(L*W*H) | 3100*2100*2700 | Certification | ISO9001 | |
Warranty | Hollow Block Making Machine 18months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
brick paver machine for sale1.Able to make block/brick/paver
2.Mitsubishi PLC
3.ISO9001 Certificate
brick paver machine for sale and hydraulic press cement tile
Main Technical Parameter of ZS-QT6-15 Concrete Hollow Block Making Machine | |||||
Overall Size(mm) | 3100*2100*2700mm | ||||
Moulding Cycle | 15-18s | ||||
Power(KM) | 40.5KW ZS-QT6-15 Concrete Hollow Block Making Machine | ||||
Area of molding | 900*800mm | ||||
Height of molding | 40-230mm | ||||
Pallet size | 850*680*25mm | ||||
Host weight | 8.5T | ||||
Master Frequency | 4500R/Min | ||||
Rated pressure | 32Mpa | ||||
Exciting force | 70-80KN | ||||
List of Theoretical Production Capacity for Concrete Hollow Block Making Machine | |||||
Proudcts | Specifications | Pc/Mould | Pc/Day | Pc/Year | |
Standard Brik | 240*115*53mm | 30 | 57,600 | 17,280,000 | |
Hollow Block | 390*190*190mm | 6 | 11,520 | 3,456,000 | |
Multi-hole Brick | 240*115*90mm | 15 | 28,800 | 8,640,000 | |
Pathway Brick | 200*100*60mm | 21 | 27,552 | 8,265,600 |
Main Features of Concrete Hollow Block Making Machine
1) Uses Japan Mitsubishi PLC control system and Delta Touch Screen. A. Visualization screen with easy operation; B. Is able to set up, update and amend the production perimeters, to maximize the production output; C. Dynamic display of the system’s status, automatic trouble shooting and warning notice; D. Has automatic-locking function, avoiding mechanical accidents caused by operational mistakes; |
2)Uses high-dynamic proportional and directional valves, which automatically adjust the oil flow and pressure as per specific working requirements, to buffer the hydraulic cylinder when working; uses integrated highpressure and soft oil pipes, with easy installation; |
3) Uses multi-shaft rotating and compulsory feeding, which greatly improves the density and intensity of the blocks, and reduces the feeding time as well; |
4) Integrated structure of vibrating and moulding platforms, which reduces the weight of the machine, and improves the vibrating efficiency; |
5) Uses double-line aero vibration-proof system, which reduces the vibrating force on the mechanical parts, improves the using lifetime of the machine, and reduces the noise; |
6)Heavy-duty machine frame, which uses high-intensity steel and advanced heat treatment, is wear resistant. |

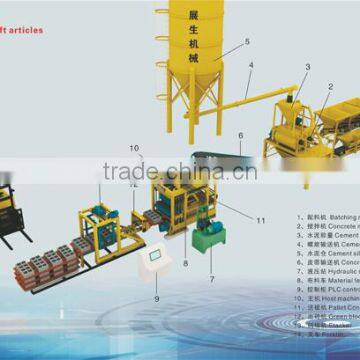

Concrete Hollow Block Making Machine Process
The Service about Block Making Machine
Sale-in Service |
1. Supervise the construction of foundation which includes electricity, water and other related amenities; 2. Our engineer will help to train the managers and technicians. Course including: factory management, equipment maintenance, quality control, stocking, marketing etc;
|
After-sales Service |
1. Set up individual client's archives with all their needs and detailed to be attended;
|
Extended Service |
1. Free Control System Upgrade. 2. Constant equipment and moulds improvement. 3. Newsletter:onalert to the latest industry trends and application. 4. Always advise new technology and craftsmanship application. |
Professional term introduce of Block Making Machine
1.Table vibration: |
Energy from the vibration table through the pallet to the mixture, make the mixture density. |
2.Pressure vibrating: |
Pressure head of mould down to the top surface of concrete,at the same time vibration start.Pressure with vibrating. |
3.Feed vibrating: |
Small vibrating when the material feeding car at the top of the mould frame,let the concrete easy to fall down to the mould frame. |
4.Green block: |
Block just forming by the machine,without curing. |
5.Demoulding: |
Separate the finished block from the mould. |
Block Making Machine
Block Making Machine Production Line
Actual Block Making Machine Line
Workshop
Our Block Making Machine Customers
The Production and raw materials of Block Making Machine
Dear customer, if you are interested in our Bricks Making Machines, please kindly tell me the size of the block/brick/pavers you want to produce, and the production capacity per day/year, then I can recommend a suitable model to you. Welcome your contact!
ZS-QT6-15 Concrete Hollow Block Making Machine
Contact Us
- Shanghai Zhansheng Environmental Protection Equipment Factory
- Contact namePaul Yang Chat Now
- Phone86-21-51855030
- AddressNo. 4188, Yanqian Road
