Product Description
Specifications
heavy duty concrete pump hoseApplication: Specially developed heavy duty hose for conveying concrete using concrete pumps.

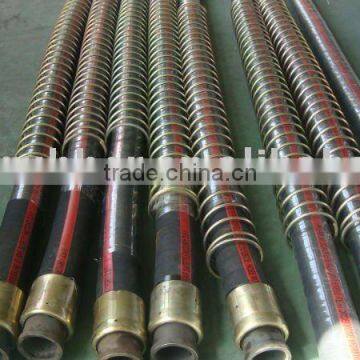

Heavy Duty Concrete Pump Hose
Application: Specially developed heavy duty hose for conveying concrete using concrete pumps. Suitable for conveying highly abrasive media such as concrete, cement and plaster.
Feature: Long service life due to abrasion resistant tube. Flexible and easy to handle, with good kink resistance due to a special hose design.
Suitable for reverse pumping, for easy cleaning.
Temperature range: -35°C / +80°C.
Safety factor: 2 : 1
Tube: NR/SBR/BR, black, smooth, antistatic, abrasion resistant.
Reinforcement: Steel cord wrapped.
Cover: SBR, black, antistatic, cloth impression.
SPEC. | ID/mm | OD/mm | WP/bar | BP/bar | Min B.R/mm | Weight/kg/m |
2" | 51 | 68±1.5 | 85 | 200 | 200 | 2.8 |
2.5” | 64 | 85±1.5 | 85 | 200 | 250 | 4.3 |
3” | 76 | 102±1.5 | 85 | 200 | 270 | 6.0 |
3.5” | 89 | 116±1.5 | 85 | 200 | 290 | 7.5 |
4” | 102 | 130±1.75 | 85 | 200 | 300 | 9.1 |
4.5” | 115 | 143±2 | 85 | 200 | 320 | 10.5 |
5” | 127 | 158±2 | 85 | 200 | 360 | 12.8 |
6” | 152 | 186±2 | 85 | 200 | 570 | 17.0 |
If you have any demands, please feel free to contact me.
