Mud Tank Unions

                               Construction

Manufactures and supplies union   is for mud tanks, mud tank connecting lines and pump suction flanges. These are manufactured for a maximum line pressure of 150 PSI. The nitrile seal provides compressive seal, the crosssection of the seal designed to provide greater sealing surface. The union   is designed to take a maximum of 7° misalignment on the pipe. Sizes which are catered for are 6", 8", 10" and 12", 6", 8" and 10" sizes can be socket welded to pipe or butt welded to tubing. 12" size requires butt weld.

Features

• Elongated cross-section of seal ring ensures greater sealing surfacewhen in contact with the pipe

• Makes up with hammer

• Molded nitrile seal provides a compression seal

• Tank union   accepts up to 7° pipe misalignment

• Available in 6, 8, 10, and 12 inch sizes

• 6”, 8”, 10” union  s may be socket welded or butt welded to piping. 12" union  s require butt-weld only

• Large diameter, medinm-low voltage and frequently dismantling, rapid installation.

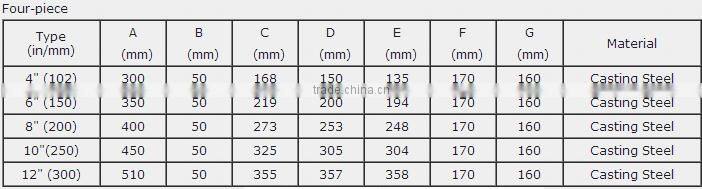

Technical parameter:

1. Medium available: mud, oil, water

2. Medium temperature: 0°C~90°C

3. Ambient temperature: -30°C~50°C

4. Medium presssure: 0.6Mpa

 Best offers a wide range of sizes and working pressure to fit our customers requirement  for both standard and sour gas service ,The pressure  up to 3000PSI ,depending on which peoduct is best suited for your application .

Please  specify schedule of the union while ordering ,so i can offer the accurate price

one new produce of my factory
