Specializing in the Production Ofrubber Hose/used Concrete Pump Rubber Hose
- Tianjin China
- T/T
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | HUAYU | |
| Model Number | concrete pump hose |
Product Description

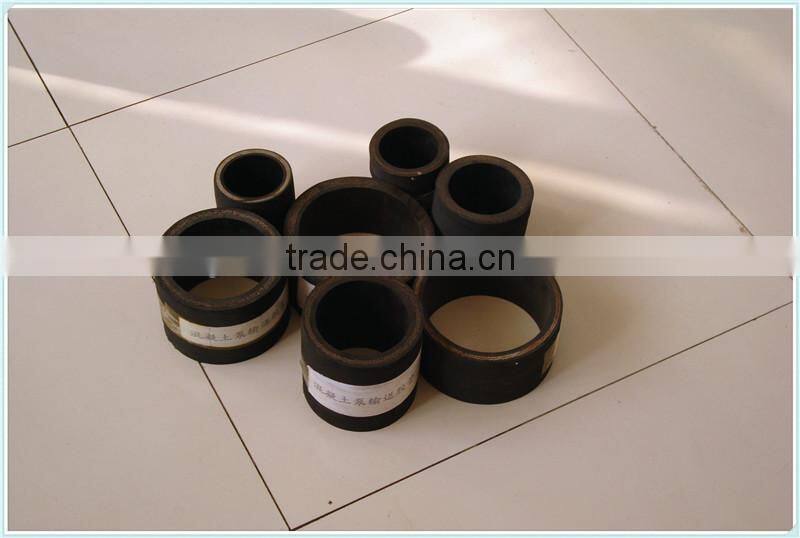

used concrete pump rubber hose
Specifications
1 .Length 1m-10m
2.Steel wires and Fabric
Features: Specially developed premium hose for conveying concrete using concrete pumps. Suitable for conveying highly abrasive media such as concrete, cement and plaster. Long service life due to abrasion resistant tube. Flexible and easy to handle, with good kink resistance due to a special hose design. Suitable for reverse pumping, for easy cleaning.
Temperature range: -35°C / +80°C
Safety factor 2:1
Tube: NR/SBR/BR, black, smooth, antistatic, abrasion resistant
Reinforcement: Steel cord wrapped
Cover: SBR, black, antistatic, cloth impression
ID (mm) | OD (mm) | Working (bar) | Burst Pressure (bar) | Bend Radius (mm) | Weight (Kg/m)
|
51 | 68±1.5 | 85 | 200 | 200 | 2.8 |
64 | 85±1.5 | 85 | 200 | 250 | 4.0 |
76 | 102±1.5 | 85 | 200 | 270 | 6.0 |
89 | 116±1.5 | 85 | 200 | 290 | 7.5 |
102 | 130±1.75 | 85 | 200 | 300 | 9.2 |
115 | 143±2 | 85 | 200 | 320 | 10.5 |
127 | 158±2 | 85 | 200 | 360 | 11.7 |
152 | 186±2 | 85 | 200 | 570 | 17.0 |
1. Resistance burning antistatic high pressure steel wire spiral rubber hose, high pressure braided hose, high temperature resistant rubber hose,CONCRETE PUMP HOSE.
2. Super high pressure steel wire hose and high pressure hose assembly.
3. Drilling hose,Floating Dredging Hose,Marine oil hose large caliber,Dredger Hose,Flame resistant hose,Dredger Suction and Discharge Hose.
4. Oil field special rubber seals.
5. Solid control parts: Hammer Union, Air Grip Unions, mud tank unions.
6. Air Operated Thread Protectors,Mech-Tec (TM)Clamp-On Thread Protectors.
The company since its inception, relying on science and technology for development. Established long-term cooperative relations with chemical shenyang rubber research institute, has the research, development, production of hundreds of special rubber products, in the domestic each big oil fields, steel mills, mining, machinery and other industries has been the user's consistent high praise, and exported to South Korea, Mongolia, Russia and other countries.
Any needs for API 7K Drilling hose, Concrete hose, High pressure hose, hydraulic hose and Hammer Union, just contact me!
