Home > Products > Marine rubber airbag > High Pressure Inflatable Boat Launching Rubber Pontoon
High Pressure Inflatable Boat Launching Rubber Pontoon
- Qingdao
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | HAOZHIYUE | |
| Model Number | HZY-6 | Part | Other |
Product Description
High pressure inflatable boat launching rubber pontoon
Product Introduction:
Marine ship airbags are also known as air balloon, inflatable bags, roller bags, air lifting bags, salvage bags.
Airbags now are used for ship launching, loading, and floating. They are widely used in cargo boat/ship/vessellaunching and landing, lifting and moving sunken ships, and salvaging stranded boats. Air bags have the benefit of not only saving labor and time, but investment costs. they are flexible, portable, and dependable. Therefore, airbags are widely used in slipping of ships and boats of all sizes.
Structure of the Airbag
Constructions:
Ship Launching / Landing Airbags, basic body are consisted of our rubber layers, synthetic-cord reinforced rubber layers, are kind of a cylindrical airbags with hemispherical heads at the both ends.
All of these are vulcanized together, and then compress air inside to enable it to roll.
1.Outer Rubber: The outer rubber layer protects the cord layers from abrasion and other external forces.
This compound has sufficient tensile and tear strength to withstand any weather condition and hard usage.
Standard color is black.
2. Synthetic-net cord Layer for Reinforcement: The reinforcement cord layers, which are made of
Synthetic-tire cord commonly used in tires, are arranged at ideal angles to hold the internal pressure and to
distribute the stress evenly providing strong efficient reinforcement.

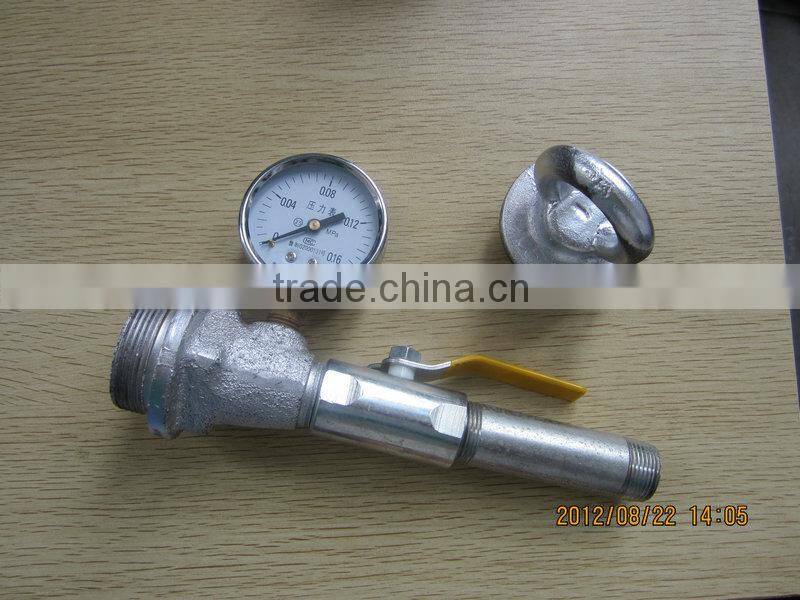

3. End Fittings: End fittings include air tightness swivel and airbags safety air inlet.
Specifications:
The standard specifications of Airbag for Ship Launching and Landing are listed as follows (We can also
supply customized size as per specific requirement):
Diameter (D): | From 0.8m to 2.4m |
Effective Length (EL): | From 6.0m to 20.0m |
Total Length (TL): | From 7.0m to 21.5m |
Standard Number of Layers: | Usually 4-10 layers |
Loading Capacity: | About 10-40 T/M |
Applications:
1. Shipwreck salvage
2. Floating bridge and dock construction
3. Rescue and remove of wrecked ship
4. Can be used as pontoons for supporting docks and other floating structure.
Performance:
1. We adopt the most advanced winding process to increase the bearing capacity and moment resistant
capacity of airbags.
2. Compared with traditional launching track, the advantages of airbags is more flexibility.They are characteriz-ed by high resistance, high gas tightness, ageing resistance, and corrosion resistance.
3. Easy to install and dismantle on the wharf and anchor mast.
4.Good after-sales service and long serving life.
Manufacturing process
Certificate
Company introduce:Professopmal Manufacturing Company Which You Can Trust On:
Qingdao Haozhiyue Co.,Ltd, located in Jimo Qingdao city,China. 15km away from Qingdao airport, 30km away from Qingdao port. Started from 1992,Jimo Haoyue Airbag Factory is subsidiary company of Qingdao Haozhiyue Airbag Co.,Ltd. 2012 Jimo Haoyue Airbag Manufacture registered the company of Qingdao Haozhiyue
Airbag CO.,Ltd, which own the independent right of import and export to satisfy the need of foreign customers
Our company is a professional manufacturer of ship launching/landing rubber airbags and marine fenders
(include pneumatic rubber fender,PVC fender,EVA foam filled fender,cylinder rubber fender). We have over
20 years of experience in producing marine equipment, and have a good reputation in this field. Our products have won praises from customers worldwide.
We have implemented a strict and complete quality control system, which ensures that each product can meet the quality requirements of customers. Besides, all of our products have been strictly inspected before shipment. Our products have attained ISO9001:2000 and CCS certifications(we produce and test according to ISO 17357 and ISO14409:2011). the quality guaranty period is 2 years and life-span is 6-10 years
1. Material: natural rubber, rubber-dipped Nylon cord fabric
2. Life span:6-10 years
3. Guaranty period: 2 years
4. Certificates: CCS.etc.
5.MOQ: 1PC
6. factory with more than 20 years experience
Any other questions,pls feel free to contract us! Welcome to visit our factory!
