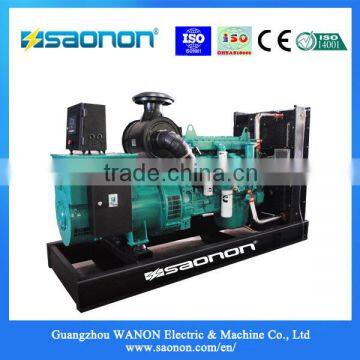

565kva China Hot Sale Power Electric Diesel Generator set for sale Open type diesel genset

FOB Price

USD $27,100 - $102,500 / Set

1 Set(Min.Order)

Port Guangzhou /Shenzhen China
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	SAONON
Model Number	S565CC6	Output Type	AC Three Phase
Speed	1800RPM	Frequency	60Hz
Rated Power	515kVA	Rated Voltage	480V
Rated Current	680A

Product Description

Reliable and efficient generating set equipped with world-famous engine, alternator and the world advanced control panel.

Power generator features:

Powerful, high reliability, low fuel consumption, low noise and low emission;

High electrical efficiency, strong anti-interference capability, class "H" insulation, long overhaul period, and long service life

Application scope:

Power generators are widely used as the prime or standby power in post and telecommunications, communication, hotels, buildings, entertainment places, hospitals, shopping malls, industrial and mining industries, etc.

Selection Table

Genset Model	Standbypower		PrimePower		Dimension L×W×H (mm)	Weight (kg)	EngineModel
Genset Model	kVA	kW	kVA	kW	Dimension L×W×H (mm)	Weight (kg)	EngineModel
S100EC6	100	80	90	72	1500×830×1250	1150	QSB5-G3
S113EC6	113	90	103	82	2200×955×1490	1272	QSB5-G4
S125EC6	125	100	113	90	2200×955×1490	1272	QSB5-G5
S145EC6	145	116	131	105	2200×955×1490	1290	QSB5-G6
S188EC6	188	150	170	136	2656×1100×1658	1550	QSB7-G3
S220EC6	220	176	200	160	2656×1100×1658	1560	QSB7-G4
S250EC6	250	200	225	180	2656×1100×1658	1572	QSB7-G5
S288EC6	288	230	263	210	3135×1100×1928	2300	QSL9-G2
S315EC6	313	250	284	227	3135×1100×1928	2347	QSL9-G3
S375EC6	375	300	341	273	2870×1120×1743	3150	QSL9-G5
S500AC6	500	400	450	360	3427×1500×2066	4121	QSX15-G6
S500AC6	500	400	450	360	3340×1425×1772	5050	QSX15-G8
S625AC6	625	500	569	455	3350×1280×1934	3940	KTA19-G4
S950IC6	950	760	865	690	4266×1879×2052	6420	QSK23-G2
S1000IC6	1000	800	906	725	4266×1879×2052	6680	QSK23-G3
S1125AC6	1125	900	1029	823	4297×1685×2079	6296	QST30-G3
S1250AC6	1250	1000	1125	900	4571×1785×2229	8350	QST30-G4
S1450AC6	1450	1160	1206	965	4470×1805×2244	8600	QSK38-G5
S1560AC6	1560	1248	1418	1135	5283×2066×2233	10075	KTA50-G3
S1750EC6	1750	1400	1594	1275	4783×2066×2233	9575	QSK50-G3
S1875EC6	1875	1500	1706	1365	4783×2066×2233	9775	QSK50-G4
S275CC6	275	220	/	/	3000×1054×1758	2485	NT855-GA
S345CC6	343	275	313	250	3000×1054×1758	2840	NTA855-G1
S375CC6	375	300	344	275	3000×1054×1758	2869	NTA855-G1B
S375CC6	375	300	344	275	300010541758	2869	NTA855-G2
S440CC6	438	350	395	315	3000×1054×1758	2940	NTA855-G3
S500CC6	500	400	450	360	3350×1280×1934	3627	KTA19-G2
S550CC6	550	440	500	400	3350×1280×1934	3830	KTA19-G3
S625CC6	625	500	563	450	3350×1280×1934	3870	KTA19-G3A
S625CC6	625	500	563	450	3350×1280×1934	3870	KTA19-G4
S688CC6	688	550	600	480	3525×1550×2032	3950	KTAA19-G5
S750CC6	750	600	/	/	3525×1550×2032	4100	KTAA19-G6A
S750CC6	750	600	688	550	3525×1550×2032	4100	QSKTAA19-G5NR2
S825CC6	825	660	750	600	4200×1805×2383	6500	KT38-G
S960CC6	960	770	875	700	4200×1805×2383	6900	KTA38-G1
S1000CC6	1000	800	906	725	4200×1805×2383	6950	KTA38-G2
S1030CC6	1030	825	938	750	4200×1805×2383	7130	KTA38-G2B
S1100CC6	1100	880	1000	800	4200×1805×2383	7150	KTA38-G2A
S1250CC6	1250	1000	1125	900	4200×1805×2244	7280	KTA38-G4
S1375CC6	1375	1100	/	/	4200×1805×2244	8610	KTA38-G9
S1575CC6	1575	1260	1375	1100	5000×1850×2343	9150	KTA50-G3
S1730CC6	1730	1384	1575	1260	5200×2260×2510	9560	KTA50-G9
S1875CC6	1875	1500	/	/	5200×2260×2510	9590	KTA50-G9
S25HC6	24	19	21.9	17.5	1580×650×1146	750	4B3.9-G2
S33HC6	33	26.5	30	24	1580×650×1146	777	4B3.9-G2
S40HC6	40	32	37.5	30	1800×730×1290	802	4BT3.9-G2
S45HC6	45	36	42	34	1800×730×1290	802	4BT3.9-G2
S55HC6	56	45	53	42	1900×783×1257	926	4BTA3.9-G2
S70HC6	70	56	62	50	1900×783×1257	926	4BTA3.9-G2
S85HC6	83	66	75	60	1900×783×1257	926	4BTA3.9-G2
S100HC6	100	80	90	72	1900×783×1257	926	4BTA3.9-G11
S115HC6	115	92	105	84	2200×830×1278	1272	6BT5.9-G2
S145HC6	145	116	131	105	2200×830×1325	1290	6BTA5.9-G2
S165HC6	165	132	150	120	2360×830×1334	1370	6BTAA5.9-G2
S180HC6	180	143	163	130	2360×830×1334	1420	6BTAA5.9-G12
S195HC6	195	157	178	143	2360×847×1366	1755	6CTA8.3-G2
S220HC6	220	176	200	160	2360×847×1366	1755	6CTA8.3-G2
S240HC6	240	192	219	175	2400×980×1460	1800	6CTAA8.3-G2
S270HC6	270	215	245	196	2540×1018×1527	1940	6LTAA8.9-G2
S300HC6	300	240	273	218	2540×1018×1527	1940	6LTAA8.9-G2
S325HC6	325	260	295	236	2540×1018×1527	1940	6LTAA8.9-G3
S415HC6	413	330	375	300	3250×1360×2100	3600	6ZTAA13-G3
S460HC	460	368	438	350	3250×1360×2100	3600	6ZTAA13-G2
S460HC	460	368	450	360	3250×1360×2100	3600	6ZTAA13-G4
