Home > Products > T5 LED Tube Light > Factory Hot g5 Base 549/849mm/1149mm/1449mm SMD2835 2pin t5 Led Tube g5
Factory Hot g5 Base 549/849mm/1149mm/1449mm SMD2835 2pin t5 Led Tube g5
- Shenzhen
- T/T Credit Card
You May Like
Product Details
| LED Light Source | SMD2835 | Warranty(Years) | 3 | |
| Input Voltage(V) | 100-277VAC | Lamp Power(W) | 18 | |
| Lamp Luminous Flux(lm) | 1800 | Lamp Luminous Efficiency(lm/w) | 95 | |
| Color Temperature(CCT) | Pure White | Working Temperature(℃) | -40, +65 | |
| Working Lifetime(Hour) | 30000 | Lamp Body Material | Other, Aluminum + PC | |
| IP Rating | IP33 | Certification | CCC, CE, Energy Star, FCC, SAA, UL | |
| Place of Origin | Guangdong, China | Brand Name | GCL | |
| Model Number | T5 |
Product Description
Factory hot g5 base 549/849mm/1149mm/1449mm SMD2835 2pin t5 led tube g5
Technical Parameters
| Model No. | SL-TL-001-9W-T5A | SL-TL-008-18W-T5A | SL-TL-004-23W-T5A |
| Norminal Power | 9w | 18 | 23W |
| LED Type | SMD2835 | SMD2835 | SMD2835 |
| Color Temperature | 2700-3500k, 4000-5000k, 5500-6500k | 2700-3500k, 4000-5000k, 5500-6500k | 2700-3500k, 4000-5000k, 5500-6500k |
| Lumen Flux | 900±100LM | 1800±100LM | 2300±100LM |

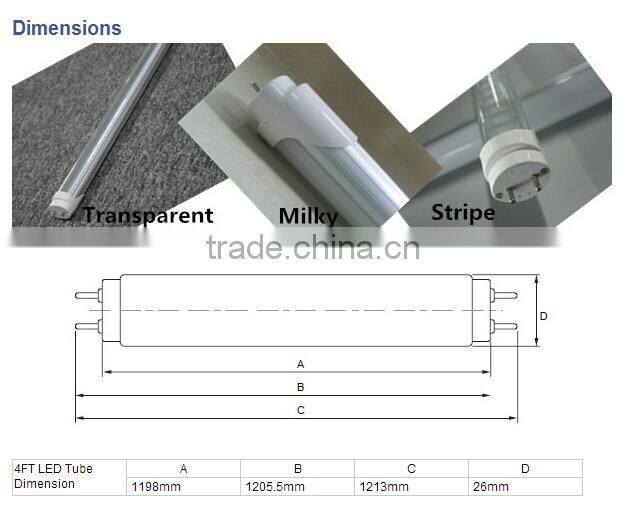

| Length | 2ft/600mm/0.6m | 4ft/1200mm/1.2m | 5ft/1500mm/1.5m |
| Cover | milky/clear/strip | milky/clear/strip | milky/clear/strip |
| Housing Material | Aluminum+PC | Aluminum+PC | Aluminum+PC |
| Color Rendering Index | >70Ra | >70Ra | >70Ra |
| Power Factor | >0.95 | >0.95 | >0.95 |
| Input Voltage | AC100-240v | AC100-277v | AC100-277v |
| Frequency | 50/60Hz | 50/60Hz | 50/60Hz |
| IP Rating | IP33 | IP33 | IP33 |
| Operating Temperature | ‘-20°C~+40°C | ‘-20°C~+40°C | ‘-20°C~+40°C |
| Storage Temperature | -30°C~+80°C | -30°C~+80°C | -30°C~+80°C |
| Single Package | Poly Bag+Fiber container | Poly Bag+Fiber container | Poly Bag+Fiber container |
| Carton Size | 660*210*230 | 1260*210*230 | 1560*210*230 |
Discription & Advantage
- Ultra-bright 2835 SMD LED.
- Light color: Natural white, Warm White, Cool White
- Front cover: Transparent or Frosted PC
- Compatible with standard fixture (G5)
- Special design to protect light source even in case of individual LED failure
uick response, no stroboscopic effect. no UV. no IR
- High efficiency power supply, low power consumption. Input: 100-277V AC
- Reliable constant current source
- Lifespan more than 30,000 hours.
- Aluminum heat sink for superior heat dissipation.

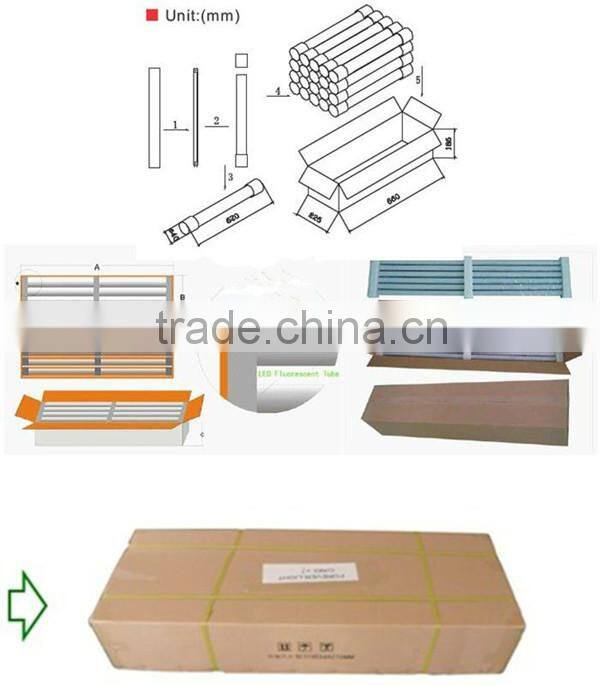

Package
25pcs in on carton package

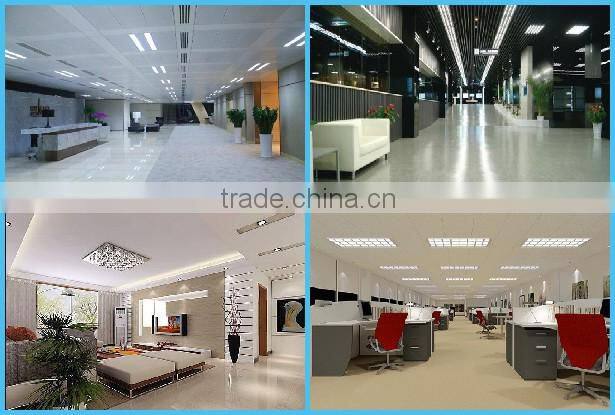

Application
* Hotels, schools, supermarket
* Commercial buildings
* Residential buildings
* Hospital and library
* Place where need high CRI and high brightness
Warranty and after-sales service
Our led tube can supply you with 2 years warranty and 3 years warranty
1. Within garrantee years, any non-human damage of the led tube, we can sent you a new tube.
2. Take a picture of the damaged tube, we will send you a new one without shipping back to us
3. Any installaion and other question after sales are welcomed and will replied within 24 hours
Trade Terms
1.Payment terms, TT, Western Union, Paypal, Escow, L/C are accepted
2.Delivery time, 7-15 working days for sample order, 20-25 working days for mass order
3.Shipping port, ShenZhen & Shekou
4.Discount are available depending on your order quantity
5.MOQ, 25pcs

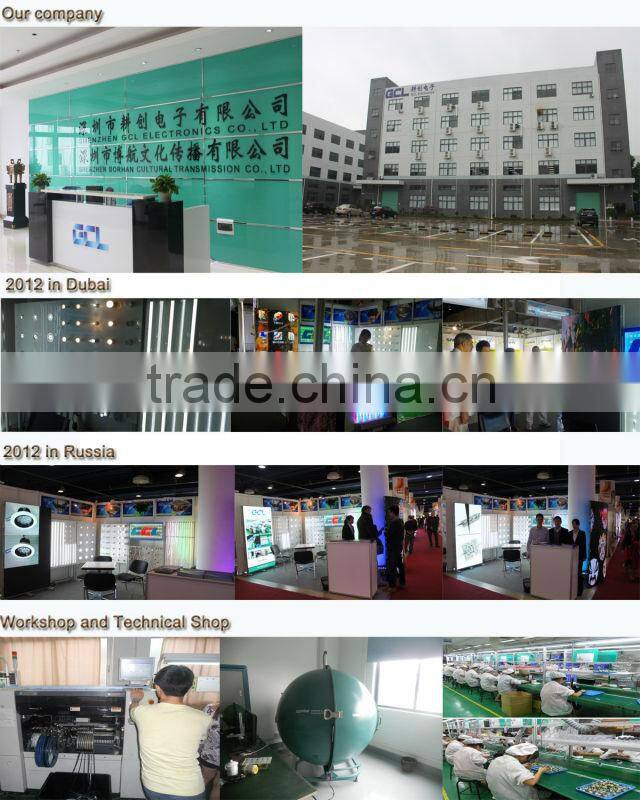

Factory advantage

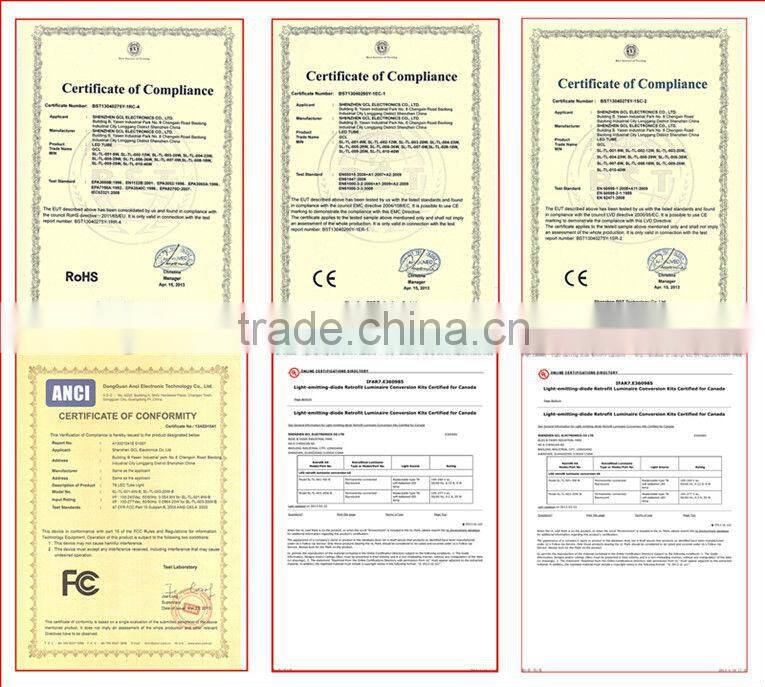

Certifications
Features for t5 led
1.Energy saving:ultra low power,and saves more than 60% energy than traditional incandescent lamp.
2.Environmental protection:no radiation, no mercury or lead, completely recyclable.
3.Super long life span:30,000~50,000 hours, life is 10 times longer than traditional lamp.
4.High quality illuminant:using highlight SMD3014 illuminant, each lamp bead attains 7-8LM.
5.Drives:isolation constant-current supply driver with high efficiency and high-low pressure to enhance product performance entirely.
6.Autonomous mold opening to make aluminum alloy extrusion shell ,simple and beautiful looking,scientific and reasonable heat dissipation structure. Scientific light distribution ,uniform illumination.safety in use and easy
installation.
