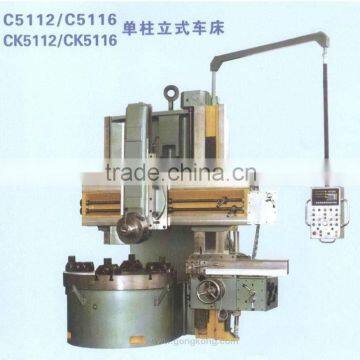

CK5123 automatic CNC Single column vertical lathe

Specifications

About Vertical lathe

Vertical lathe generally has two types

• single column Vertical lathe type
• double column Vertical lathe type.

Small type vertical lathe generally be made into single column Vertical lathe, and large type vertical lathe into double column Vertical lathe.

main characteristic of Vertical lathe structure : the main shaft be in a vertical position and the table in the plane position, making workpiece installation &adjustment more convenient.

Table be supported by rail making machine has good rigid and cutting smoothly. There are more than one knife rest, so knife can be quickly changed .

vertical lathe machining accuracy can reach IT9 - IT8, workpiece surface roughness Ra can reach 3.2-1.6 um.

main parameters of Vertical lathe is the biggest turning diameter D.

Vertical Lathe Applications

1. Vertical Lathe can be widely applied to machinery processing in all walks of industries:Metallurgical machinery, chemical machinery, power generation equipment, Military industrial,national defense industry's etc.

2.Vertical Lathe be used to do Rough or finish turning machining on the cylndrical surface, conical surface, end face,screw thread , Arc surfaceand other Complex curved surface and also do grooving and cutting off,etc

Vertical Lathe Brief Introduction

1.Single column CNC mobile series vertical lathe be designed by our factory on advanced lathe technology and experience domestic and foreign,which combined mechanical, electrical, hydraulic and computer into integration machine tools.

2.The product is suitable for Rough or finished turning processing on the Inside and outside cylndrical surface,conical surface,end face,screw thread , Arc surface and other Complex curved surface made by many kinds of materials such as black metal,non-ferrous metal and Some non-metallic materials.

3.The workbench base, slider base and pillar all adopt the LFF whole casting and hot symmetric structure. The spindle centring by double row short cylindrical roller bearing with high precision adjustable radial clearance. Axial adopt the constant current & static pressure guide rail, insure products possess high machining accuracy, high carrying capacity, and smallest thermal deformation superiority.

4.The main transmission system drived by dc speed control motor, through two shifting speed organization and then realize the Speed adjustment of workbench.

5.The products are divided into two kinds, regular type and numerical control type. All the configuration are of the domestic and international advanced functional parts. Users can make freedom choice of The numerical control system by brand of Siemens, funuc, dalian GuangYang according their needs.

technical parameter

Vertical Lathe Technical Parameter
