Home > Products > (Photo Control) Twist-Lock Photocells > photo control switch

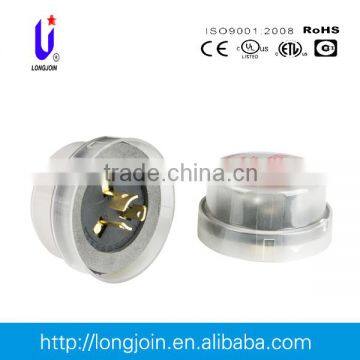

photo control switch
- 400000 Piece / Pieces per Month
- shanghai ningbo
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | longjoin | |
| Model Number | JL-202 |
Product Description
Specifications
photocell1 ANSI C136.10-1996 Twist Lock2 Time Delay 30~120 seconds
3 Temperature compensated
4 Various Enclosures
5 Lightni
photocell
1, Thermal switch assembled with bimetal and ceramic elements, enclosure and
lens made from polycarbonate, base made from PBT
2, Thermal switch with ambient temperature compensator to illuminate
temperature affects
3, Intended to control outdoor lighting fixtures with natural lighting level. Time
delayed to eliminate unexpected turning-off by head lights and lightning during
night time
4, CdS photocell, 1" deluxe photocell available
5, Various enclosure can be chosen, terminals meeting ANSI C136.10 and
UL773 for easier maintenance
6, Rated voltage: 110-120V AC / 220-240V AC / 208V AC / 277V AC or as per
customers' requests .
Rated freq.: 50/60Hz
Rated loading: 1,800W (tungsten) / 1,000VA (ballasted)
Power consumption: <1.5VA
On-off level: 10 - 20lux on (dusk), 30 - 60lux off (dawn) or customer's request
Ambient temp.: -40 ~ +70° C .
Related humidity: 96%
7, UL and CUL listed (JL-202)
8, Optional built-in MOV: 110J/3,500A (code: 12), 235J/5,000A (code: 15) or 460J/7,500A
(code: 23)
photocell
