12 Months Warranty Hot Stainless Steel Salt Sugar Linear Type Vibration Screening Sieve
- Qingdao Shanghai Dalian
- T/T L/C D/P D/A Credit Card
You May Like
-
Linear Vibrating Sieve for Parallel Twin Screw Pelletizer
-
China Grain Linear Vibrating Screen Sieve for Sieving Various Grains
-
High Technology Carbon Steel Linear Vibrating Sieve From China Factory
-
Factory Direct Sales Screening Rate 98% Linear Vibrating Sieve For Grain
-
XC Series High Quality Linear Vibrating Sieve Screening Machine for Mining
-
Abrasive Limestone Carbon Steel Linear Vibrating Screen From China Factory
Product Details
| Condition | New | Type | Linear | |
| Application | Chemicals | Place of Origin | Henan, China | |
| Brand Name | Xianchen | Model Number | XC1200-1S | |
| Voltage | 220V/380V | Power(W) | 1.1kw | |
| Dimension(L*W*H) | diffent from different machine | Weight | 380kg | |
| Certification | ISO9001:2008 | Warranty | 12 Months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Can be packed according to the size of the machine.Our standard exporting packing is Fumigation-free wooden case,and 1 set/case.If you have special requipment,please just inform us.
Product Description

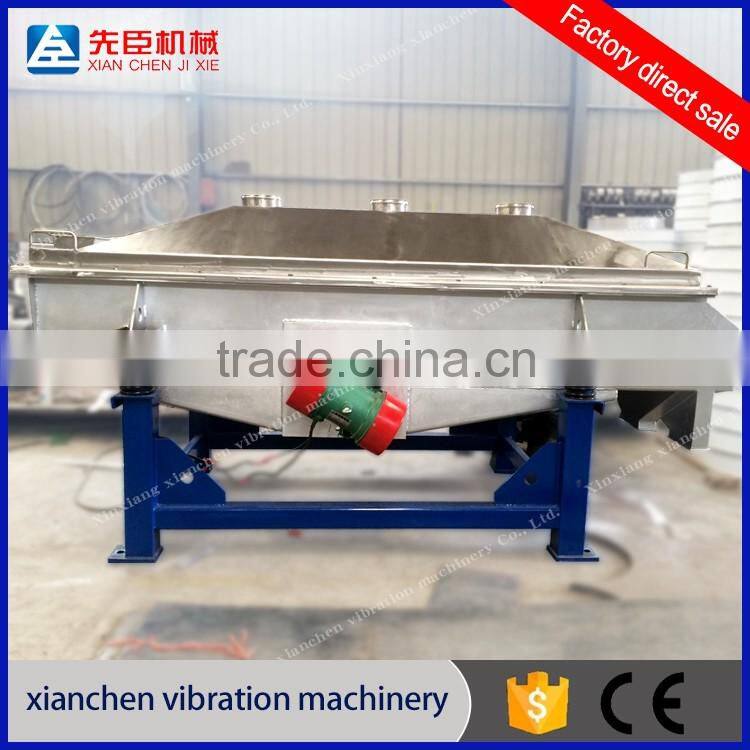

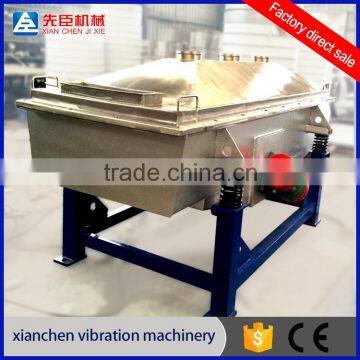

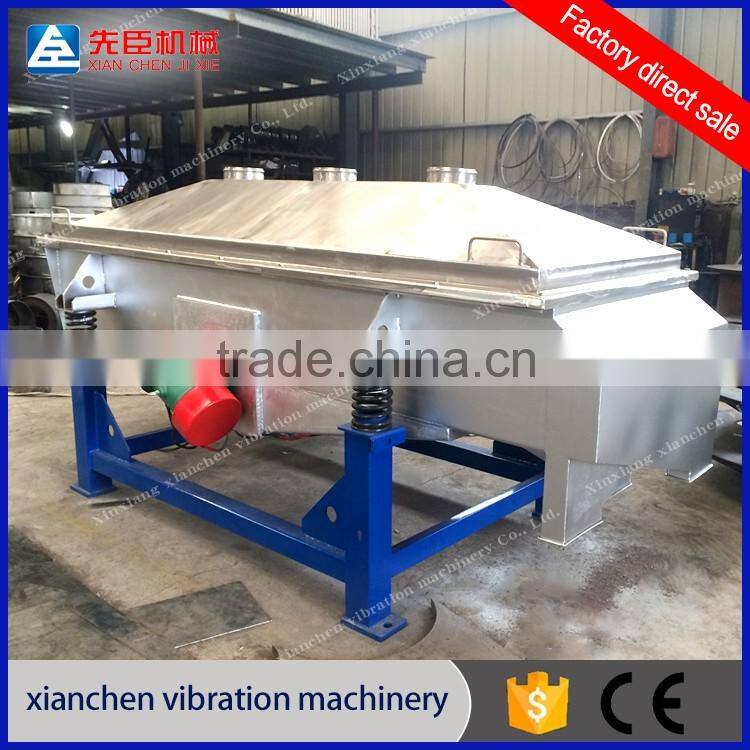

12 Months Warranty Hot Stainless Steel Salt sugar Linear type Vibration Screening Sieve
General Description -- Linear Vibrating Screen
The linear vibrating screen machine is a kind of new-type sieve machine with two horizontal vibration motor as its vibrating source. Its performance has reached the international advanced level. The materials on the screen are thrown up and move in a straight line to achieve the aim of sieving and grading. Any materials with a diameter of 0.07mm-20 mm could be handled.

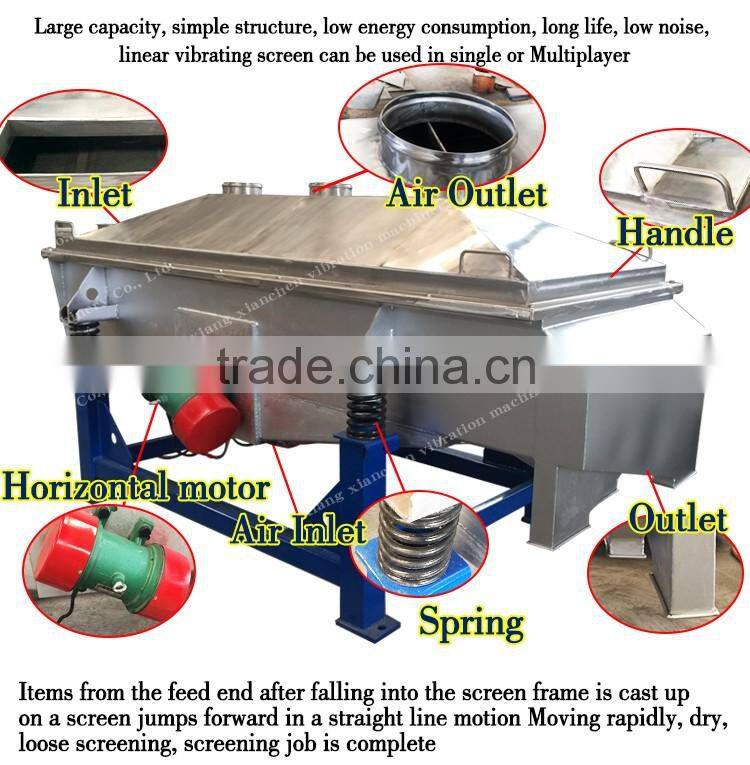

Working Principle -- Linear Vibrating Screen
The linear vibrating screen uses horizontal vibration motor or special vibration exciter as its vibration source. The horizontal vibration motor and vibration exciter have a eccentric block at the both at their upper and lower sides. The eccentric blocks can generate a three-dimensional movement in horizontal, vertical and inclined directions. By adjusting the phase angles of the upper and lower eccentric blocks, the materials on the screen can change the movement locus, achieving suitable screening aims.
Features -- Linear Vibrating Screen
1. Low consumption with high yield and low cost.
2. Fully enclosed structure, automatic layout, more suitable for pipeline operations.
3. Good sealing without dust flying.
4. Can be used for single or multi layer.
5. Material auto discharge, be able to continuous operation.
6. Every part of the screen box used copper plate and section welded together.
Usage -- Linear Vibrating Screen
1) Chemical industry: resin pigment, medicine, grease, paint, palette, etc.
2) Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material,slurry, etc.
3) Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder,pollen, food additive, soybean milk, juice, etc.
4) Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.
5) Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.
6) Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder, etc
Technical Parameter -- Linear Vibrating Screen
Model | XC-612 | XC-520 | XC-525 | XC-1020 | XC-1025 | XC-1030 |
Screen Size(mm) | 600*1200 | 500*2000 | 500*2500 | 1000*2000 | 1000*2500 | 1000*3000 |
Mesh Size(mesh) | 2-325 | |||||
Power(kw) | 0.37*2 | 0.37*2 | 0.37*2 | 0.75*2 | 0.75*2 | 1.1*2 |
Layer | 1-5 | |||||
Leaning angle of screen(°) | 0-10 | |||||
About us
Xinxiang Xianchen Vibration Machinery Co,. Ltd ,which is established in the year of 2009, located in China biggest machinery manufacture base Henan province, is a professional vibration machinery manufactures which specializes in the production of sieving equipments, conveying equipments, crushing equipments and feeding equipments as well as relevant parts. we committed to solve all kinds of sieving problem.
Our tenet: "market oriented, technology based, quality of survival, innovation and development ".
We have passed ISO9001:2008 certification. Under the guide of international quality management system, our products have won not only good reputation in china but also applauses by foreign clients like United States, Germany, Turkey, Indonesia and so on.
Maching Process
Exhibition & Customers
Certification & Honor
1. Pre-sale service:
a. In order to let each customer know better about the performance and requirements, we provide these services
b. To send each potential customer the detailed production information and company profile
c. According the user’s different needs, we work to recommend and guide for them
d. To help them select the appropriate equipment
2. Service during sale:
a. Do good communication with customers, so that each part can exchange the information.
b. Deliver on time as per the contract clause.
3. After-sale service:
a. To track the customer’s feedback after receiving the equipment
b. Any product quality we receive, the technical personnel will guide to solve the problem
c. All the products have three guarantees
d. Provide technical exchanges
e. Do well about the work of maintenance and service
1. How to choose the machine?
a: Customers who are familiar with technical performance and parameters can directly order.
Note: You had better send us the pictures you have ever used.
b: Customers who need us to choose the models, please follow the information, tell us:
• Name and feature of the raw material?
• Aim of using: get rid of impurity, filtration, grading
• Handling capacity: kg /h, L/h
• The raw material size: (mesh or mm)
• How many final materials you want, or how many layer you need?
Note: You had better send us the relevant pictures about the details.
2.How many kinds of material are supported?
• All stainless steel (304, 316L)
• All carbon steel Q235
• Contact part Stainless steel
3.Is it special requirement available?
This machine also could be customized by clients' specific production line requirement.
If you'd like to inquiry any question, Click " Send" at the bottom.
Company Profile
Xinxiang Xianchen Vibration Machinery Co,. Ltd ,which is established in the year of 2009, located in China biggest machinery manufacture base Henan province, is a professional vibration machinery manufactures which specializes in the production of sieving equipments, conveying equipments, crushing equipments and feeding equipments as well as relevant parts. we committed to solve all kinds of sieving problem. Xianchen has professional engineers and experienced employees to provide the manufacture, design, customized solution and after service for worldwide customers. Our tenet: "market oriented, technology based, quality of survival, innovation and development ".We have passed ISO9001:2008 certification. Under the guide of international quality management system, our products have won not only good reputation in china but also applauses by foreign clients like United States, Germany, Turkey, Indonesia and so on. xianchen sincerely treat every customer, hope to make friends with people from all over the world, and very looking forward to establishing a long-term win-win partnership with you.
