Continuous Edible Oil Filter Factory

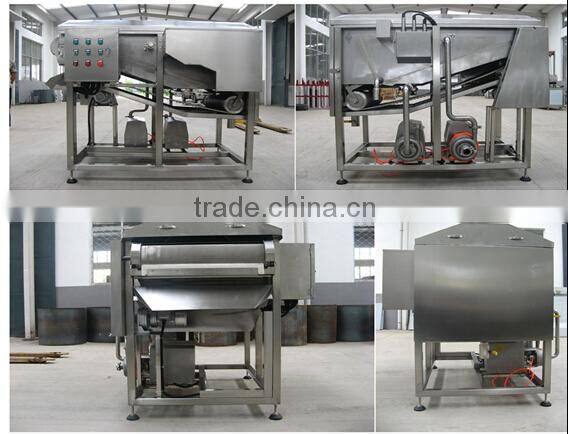

                                                     Continuous Mesh Belt Oil filter WYJ-800

Mechanical mesh belt filter oil machine is one of the important auxiliary equipment of Fried food production process, it can synchronous work with frying machine. The machine uses physical method filter out particulate impurities, carbide, polymer and other harmful substances which produced in high temperature frying process effectively, improving the fried food environment, inhibit the acid value and higher oxidation value, improve the utilization rate of oil, increase oil change cycle, reduce the enterprise cost, improve enterprise efficiency and product quality

Filter cloth: US Cambridge company stainless steel filter cloth, mesh is 60 microns in diameter, can filter out floating impurity completely.Filter cloth material is 304 stainless steel wire, high wear-resisting and corrosion resistance, recycling, convenient cleaning

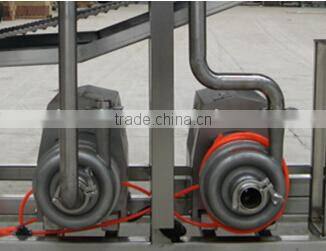

sanitary pump: oil flow is 10 t/h, power is 2.2 kw, hydraulic head is 24 meters.
the protection of the heat pump system:because the heat pump oil temperature is 120-200 degrees, so you need to connect water circulation, ensure the sealing of the pump

Limit control system: when the oil reaches maximum filtering limit, inlet pump stop working,when the oil amount is less than the limit, inlet pump start to work.

jet: spray oil on the cloth completely using the fan and sanitary pump effective head, fully filter

Self-tightening device of scraping the slag system: the teflon plate scraping slag and filter cloth using self-tightening technology, to ensure the impurities can scrape and no damage to filter.

Structure features

high filtering capacity
work automatically and continuously
oil level controlled automatically
filtering fully completely
no need of filter paper and filter aids
operation stable and reliable, long life

Our Main Product:

1.fryer with deoiling machine,continuous frying machine,oil filter(vacuum /mesh belt oil filter)

2.smoking oven,vegetable washing machine,airdryer,blancher

3.frozen french fries production line

4.fresh potato chips production line

atball/seafood ball production line

6.falafel making machine
