Frozen Fish Ball Production Line
- Qingdao
- T/T
You May Like
-
Automatic Fish Ball Machine; Fish Ball Machinery For Sale
-
Automatic Production Line for Fish Ball
-
Meat ball, Fish Ball Forming, Boiling Production Line
-
Meat Ball Fish Ball Forming Frying Line; Frying Line for meat ball
-
Meat ball, Fish Ball Forming, Boiling Production Line
-
Automatic Falafel Making Machine
Product Details
| Condition | New | Type | Meat Ball | |
| Application | Meat processing | Automatic Grade | Automatic | |
| Place of Origin | Shandong, China | Brand Name | Xinxudong | |
| Voltage | 380v | Power(W) | 155kw | |
| Dimension(L*W*H) | 15*2*2m | Weight | 10000kg | |
| Certification | CE certificate | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Frozen Fish Ball Production Line
A. Customer’s requirement
1. Capacity is 1t/h 2. Fish meat ball weight 20g/ piece
B. Flow Chart
Meat cutting machine-- Meat Grinding machine—Meat beating machine—meat ball forming machine—Shape forming water tank--- Boiling tank---Cooling tank
C. Details

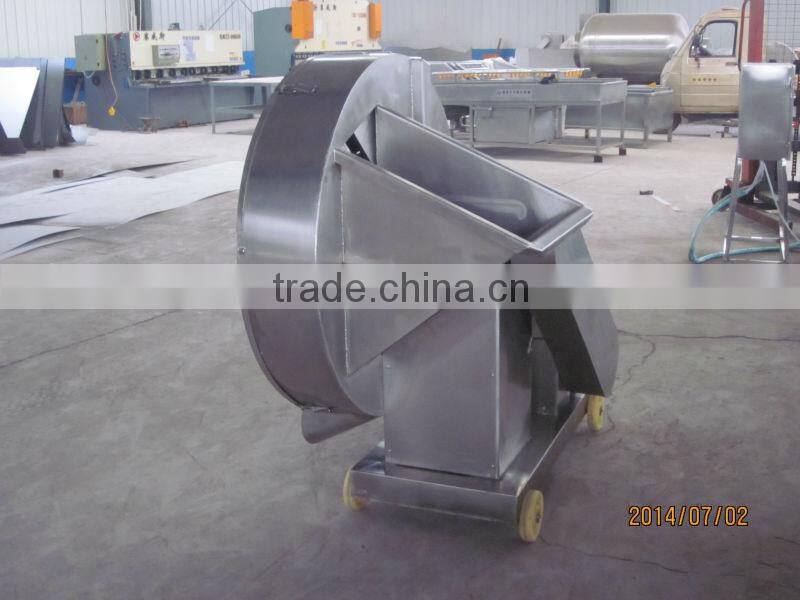

1. Meat cutting machine
It is used to cut frozen meat of -18 degree into slices
Made of SUS304
Capacity: 2-4t/day
Weight: 450kg
Sie 1300*1000*1400mm
2. Meat grinding machine
It is made of stainless steel SUS304
Can grind the frozen meat slices into meat butter;
It can be used for frozen meat

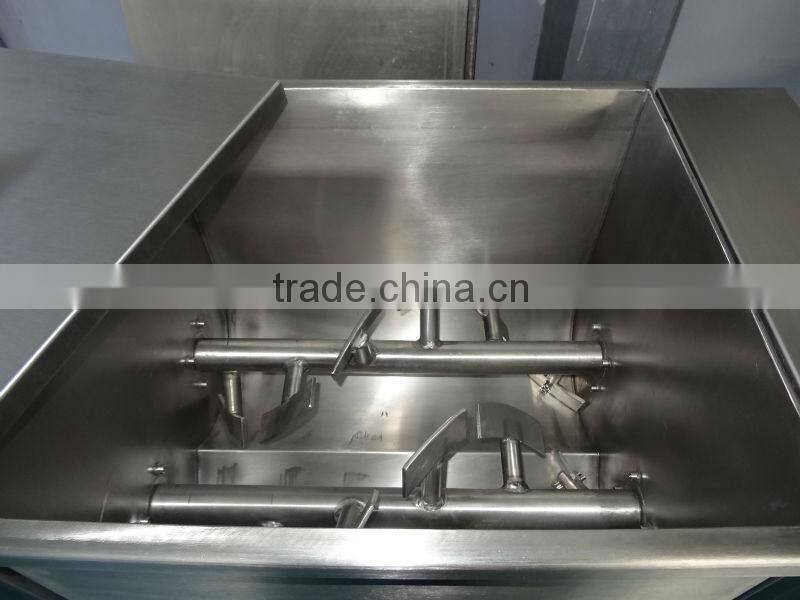

3. Meat mixing machine
It is SUS304
Equipped with speed frequency control system which can be automatic discharging

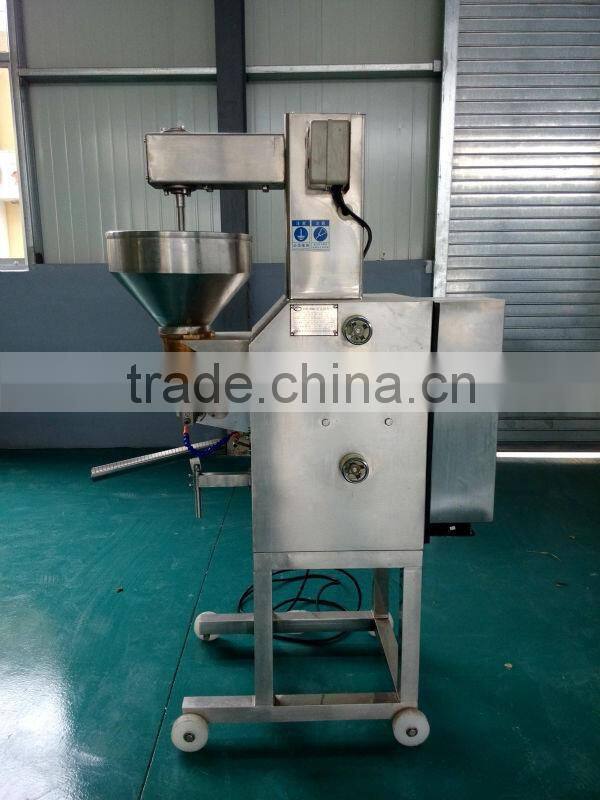

4. Meat ball forming machine
Capacity:300 pieces/min
Power: 1.5kw
Weight:180kg
Meat ball: 8-25g
Size: 1000*500*1700mm
It is SUS304;
Can make different types of meat ball;
The speed can be adjusted.
5. Shape forming water tank
It is heated by steam inside of the machine; Water temperature is controlled by adjusting the steam volume through high temperature and high pressure valve;
Water flow is formed by the water pump and it makes meat ball flow to the end of the water tank and the speed is controlled by adjusting water speed valve.

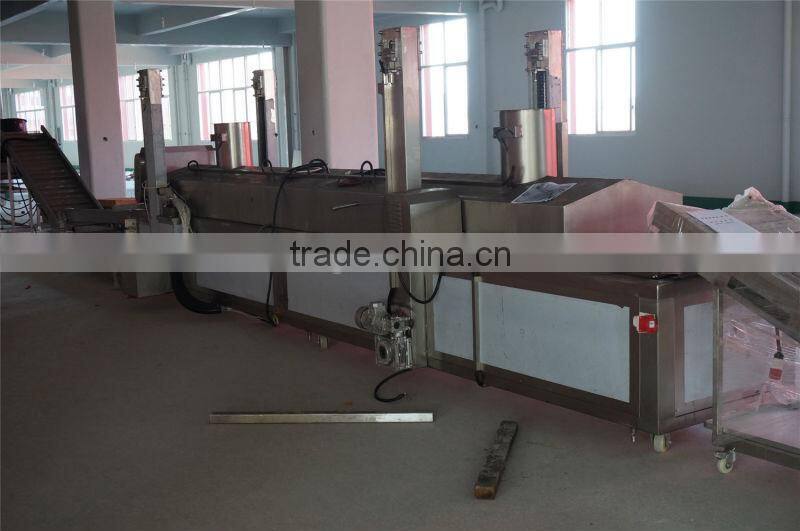

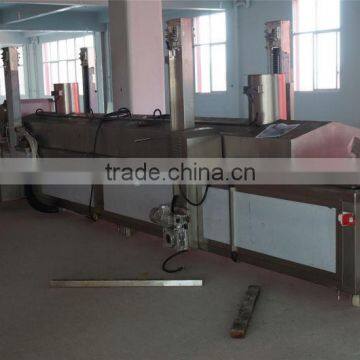

6. Boiling tank
It is heated by steam inside of the machine; Water temperature is controlled by adjusting the steam volume through high temperature and high pressure valve;
Water flow is formed by the plates over the machine;
The boiling time can be adjusted by adjusting the sped of boards.

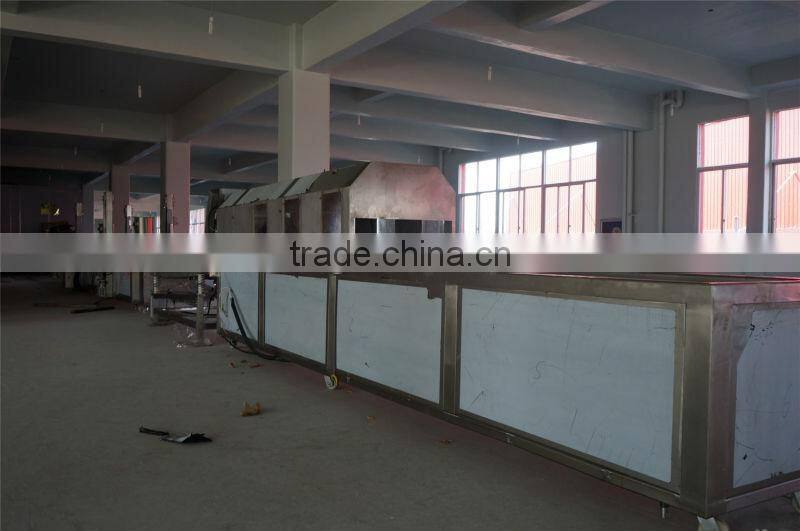

7. Cooling tank
To cool the meat ball after boiling line and convey it to freezer; Continuously feeding in new low-temperature water and flow out high –temperature water from the cooling tank.

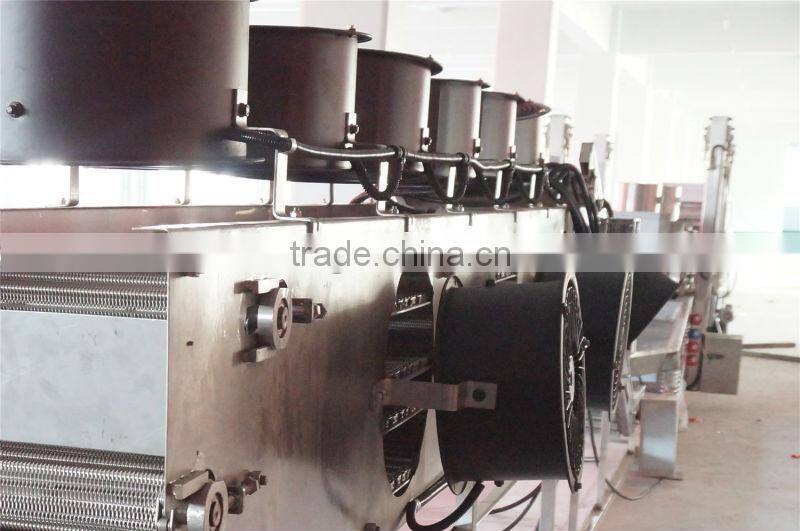

8. Air cooling line
Wood package
Service
Pre-sales: Based on customer’s requirement: capacity, local voltage, workshop, our engineer design and make the equipment list for customer. We will design the production process including all details such as water supply, electricity source, steam and so on for customers. All material is SUS304 and in best quality. Before delivery, the final customer can come to test.
Sales: All machines are manufactured based on the contract and drawing. After receiving all payment, we will arrange to make delivery in shortest time. All machines for exporting are packed in wood package. We will send installing instruction together with machines.
After-sales service: After machines reach buyer’s workshop, we will arrange the engineers to install. We will supply whole-life service. The quality guarantee is one year.
Zhucheng Xinxudong Machinery Co.,ltd is established in 1998. We are the pioneer in the line of manufacturing of batch fryer, continuous frying machine and all different food frying production line In order to expand business scope, now we have three companies: Zhucheng Xinxudong Machinery Co.,ltd, Zhucheng Xindaxin Food Equipment Co.,ltd, and Zhucheng Bokang Food Machinery Co.,ltd.
Zhucheng Xinxudong Machinery Co.,ltd ‘s main products is various types of frying line, Potato chips/ frozen French fries production line . We have 11 engineers who supply drawing, design for our production line. There are more than 50 domestic salesmen who sell our machinery in domestic and they distribute in different area. For international business, we find customers from world through alibaba, internal trade and other tools. Now our machinery is sold to USA, UK, Germany, Spain, Saudi Arabic, Argeria, Nigeria, Philippines, Malaysia, Indonesia, India, Argentina and all over the world. We own a good reputation for our highest-quality and best –after sales service. We established potato chips line in Pakistan, Bhutan, India this year, and sold frozen French fries production line to Saudi Arabic, Argeria and Brazil.
Main Products
Batch fryer: XD-300, 400,500,600,750,800,1000,1200,1500
Continuous frying machine: XDL-2500,3500,4500,5500,6500,8500
Potato chips production line capacity from 50-1000kg/h
Frozen French fries production line: capacity from 50kg/h to 2000kg/h.
Chicken nuggets/ patty production line
Snack processing line
Checking line
