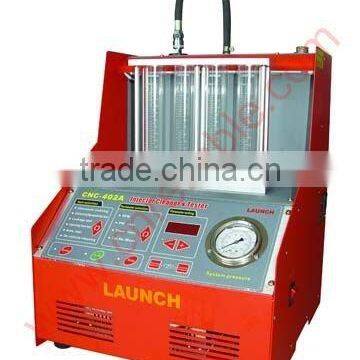

Launch original CNC602A Injector Cleaner

CNC-602A is an advanced electromechanical product, which can clean and test injectors by simulating engine working conditions. It can also perform cleaning on the injectors and fuel supply system on vehicle.

Feature

1. Ultrasonic cleaning: To perform simultaneous cleaning on several injectors and to remove the carbon deposits on the injector completely.
2. Uniformity/Sprayability test: To test the uniformity of injecting amount of each injector, and to monitor the spraying status of each injector with the help of backlight. This test is also for reverse flush.
3. Leakage test: To test the sealing and dribbling conditions of injectors under system pressure.
4. Injecting flow test: To check the injecting amount of the injector in 15 seconds of constant injection.
5. Auto. test: To test injectors by simulating different working conditions.
6.On-vehicle cleaning: The unit is equipped with various adaptors and couplers that facilitate cleaning on the injectors on vehicle.

Specification:

 Power supply: AC220V±10%, 50/60Hz;AC110V±10%, 50/60Hz.
 Input power: 250W;
 Ultrasonic cleaner power: 100W;
 Simulated RPM range: 109990rpm; step: 10rpm;
 Time range: 19999s;
 Pulse width: 0.525ms; step 0.1 ms;
 Fuel tank capacity: 4700ml;
 Dimensions: 385mm×410mm×500mm;
 Weight: About 35kg

Spare Parts

No. PartCode PartName
1  105020217  CNC pulse signal connection cable 1,T=0.5
2  105020218  CNC pulse signal connection cable 2,T=0.8
3  103260037  Ultrasonic cleaner assembly 100W
4  106030038  On-vehicle adaptor package(tool kits)
5  107010428  CNC-602A user manual(En&Ch)
6  103250013  Top-supply connector 1
7  103250015  Swiss thread adaptor for fuel top-supply injector
8  103250016  Coarse thread adaptor for fuel top-supply injector
9  103250018  CNC-601/801 Hexangular stopper
10  104990012  CNC-801 BUICK injector adaptor
11  199010019  Injector testing liquid
12  307030024  Injecter detergent
