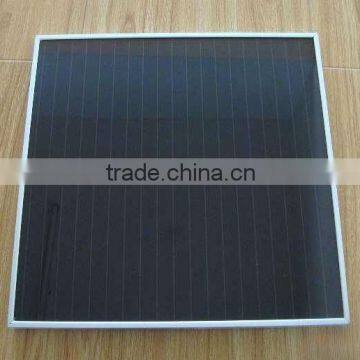

90-100WP Thin Film Solar Panel

FOB Price

USD $0.9 - $1.35 / Piece

25 Pieces(Min.Order)

Port China Port
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China	Brand Name	Hilight Solar
Model Number	HS-A-90WP-100WP	Material	Amorphous Silicon
Size	1309x1109x35	Max. Power	100W

Product Description

Specifications

Thin Film Solar Panel
Power: 1W-100WP
Thin Film Solar Panel:High performance
Warranty:25 years lifetime
Certificate:TUV,UL,

Amorphous silicon solar panels, a-Si solar panel, a-Si solar module,amorphous silicon solar pv module, a-Si thin film solar panel,amorphous silicon thin film solar panel power range from 1Watts to 100Watts

a-Si Thin Film Solar Panel/Module Product Description:

The price of amorphous silicon solar panel is competitive than silicon solar panel. It can be promoted in large scale.
Amorphous silicon solar panel has advantages as high voltage, good charging ability and workable under weak sunlight. In other words, it has good quality and competitive price compared with silicon solar panel.
To actual test results, amorphous silicon solar panel can prduce more than 10% to 20% energy per year than silicon solar panel of the same power, especially in the area which has many overcast and rainy days.

a-Si Thin Film Solar Panel/Module Technical Parameter:

Solar Module	a-Si Thin Film Solar Panel/Module
Maximum power (Wp)	90 w	95 w	100 w
Maximum power voltage (V)	97.20	104.00	104.80
Maximum power current (A)	0.92	0.91	0.95
Open circuit voltage (V)	130.20	131.00	132.80
Short circuit current (A)	1.10	1.00	1.19
Size of module (mm)	1309x1109x35	1309x1109x35	1309x1109x35
Type of Solar Cells	a-Si single junction
Maximum system voltage (V)	≤1000 VDC
Temperature coefficients of Isc (%)	+ 0.09/ °C
Temperature coefficients of Voc (%)	-0.28/ °C
Temperature coefficients of Pm (%)	-0.20/ °C
Temperature coefficients of Im (%)	+0.09/ °C
Temperature coefficients of Vm (%)	-0.28/ °C
Temperature Range	-40°C~+85°C
Surface Maximum Load Capacity	60m/s(200kg/sq.m)
Allowable Hail Load	steel ball fall down from 1m height
Weight per piece (kg)	18.00	18.00	18.00
Junction Box Type	Junction box with TUV certificate
Length of Cables (mm)	as customer's demand
Module Efficiency (%)	6.6%	7.0%	7.3%
Output tolerance (%)	±5%
Frame (Material, Corners, etc.)	Aluminum Alloy Frame
Standard Test Conditions	AM 1.5,1000W/m2, 25°C
Warranty	5 years product warranty and 20 years 80% of power,25 years for lifetime

The hwarrant of the products life can reach 20 years. The maximum output power(pm) will not less than 80%
