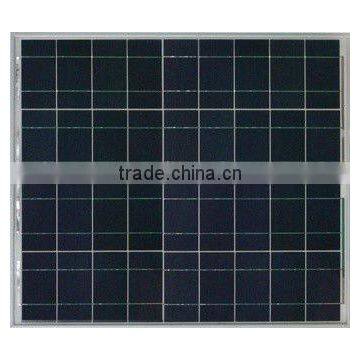

50W-75W Poly Solar Panel

FOB Price

USD $0.9 - $1.35 / Piece

2 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Solar Module
Power range:1W-280W
Warranty:25 years lifetime
Good delivery time & Competitive Price
Certificate:TUV,UL,CE

Polycrystalline Silicon Solar Module/Solar Panel Technical Parameter

ITEM	Polycrystalline Silicon Solar Module/Solar Panel
Maximum power (Wp)	50w	55w	60w	65w	70w	75w
Maximum power voltage (V)	17.30	17.30	17.30	16.80	17.10	17.40
Maximum power current (A)	2.89	3.18	3.47	3.88	4.10	4.31
Open circuit voltage (V)	21.60	21.60	21.60	20.90	21.20	21.50
Short circuit current (A)	3.21	3.54	3.86	4.20	4.40	4.60
Size of solar cells(mm)	156x156			125x125
Number of cells (Pcs)	36 PCS( 4x9 )
Size of module (mm)	80051035	87051035	94051035	120054535
Brand Name of Solar Cells	CEEG or JA SOLAR
Maximum system voltage (V)	1000
Temperature coefficients of Isc (%)	+ 0.1/ °C
Temperature coefficients of Voc (%)	-0.38/ °C
Temperature coefficients of Pm (%)	-0.47/ °C
Temperature coefficients of Im (%)	+0.1/ °C
Temperature coefficients of Vm (%)	-0.38/ °C
Temperature Range	-40°C~+85°C
Surface Maximum Load Capacity	60m/s(200kg/sq.m)
Allowable Hail Load	steel ball fall down from 1m height
Weight per piece (kg)	5.0	5.4	5.8	7.8
Junction Box Type	Junction box with TUV certificate
Length of Cables (mm)	as customer's demand
Cell Efficiency (%)	11.30%	12.30%	14%	15%	16%	16.80%
Module Efficiency (%)	10%	11%	13%	13%	14%	14.50%
Output tolerance (%)	±3%
Frame (Material, Corners, etc.)	Aluminum Alloy Frame
Standard Test Conditions	AM 1.5,1000W/m2, 25°C
Warranty	5 years product warranty and 20 years 80% of power,25 years lifetime
