Home > Products > Linear bearing > LM6UU axis machine tool linear bearing

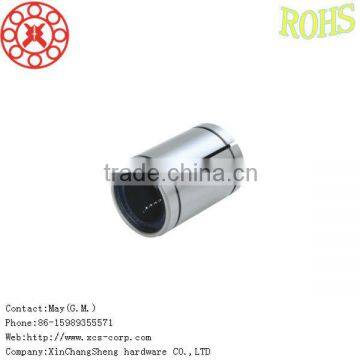

LM6UU axis machine tool linear bearing
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Brand Name | neutral | Precision Rating | ABEC1,ABEC3,ABEC5,ABEC7,ABEC9,P0,P6,P5,P4,P2 | |
| Model Number | lm6uu axis machine tool linear bearing | Place of Origin | Guangdong, China |
Product Description
Specifications
1.lm6uu axis machine tool linear bearing2. About us: Manufacture
3. OEM and ODM service
4. Higher rigidity
lm6uu axis machine tool linear bearing specification.
- Item: LM6UU Bearing
- Type: Linear Motion Ball Bushing
- Number of Ball Circuit: 3
- Size: 6mmx 12mmx 19mm
- Quantity: One Bearings
- Dynamic load rating Cr: 7 KFG
- Static load rating Cor: 13 KFG
Delivery time: We have enough stock on LM6UU standard bearings.
- Item: LM6UU Bearing
- Type: Linear Motion Ball Bushing
- Number of Ball Circuit: 3
- Size: 6mmx 12mmx 19mm
- Quantity: One Bearings
- Dynamic load rating Cr: 7 KFG
- Static load rating Cor: 13 KFG
axis machine tool linear bearing quality control:
Our company inspecter will check the products one by one before we sent it out, and we can also follow customers' special requests to control the quality. We have got little feedback of quality issue from customers these years. So please rest assure.
axis machine tool linear bearing packing.
Industrial package. We can provide other packaging materials according to customers' requirment.
Standard | Adjustable | Open | Size | |||||||
Model | Steel ball row | Model | Steel ball row | Model | Steel ball row | Incircle size | Outer Diametre | |||
dr | Tolerance | D | Tolerance | |||||||
|
| |||||||||
LM6UU | 3 | - | - | - | - | 6 | 0 | 0 | 12 | 0 |
LM8UU | 4 | - | - | - | - | 8 | 15 | |||
LM8UU | 4 | - | - | - | - | 8 | 15 | |||
LM10UU | 4 | - | - | - | - | 10 | 19 | |||
LM12UU | 5 | LM12UU AJ | 5 | LM12UU OP | 4 | 12 | 21 | 0 | ||
LM613UU | 6 | LM13UU AJ | 6 | LM13UU OP | 4 | 13 | 23 | |||
LM16UU | 6 | LM16UU AJ | 6 | LM16UU OP | 4 | 16 | 28 | |||
LM20UU | 6 | LM20UU AJ | 6 | LM20UU OP | 5 | 20 | 0 | 0 | 32 | 0 |
LM25UU | 6 | LM25UU AJ | 6 | LM25UU OP | 6 | 25 | 40 | |||
LM30UU | 6 | LM30UU AJ | 6 | LM30UU OP | 6 | 30 | 45 | |||
LM35UU | 6 | LM35UU AJ | 6 | LM35UU OP | 6 | 35 | 0 | 0 | 52 | 0 |
LM38UU | 6 | LM38UU AJ | 6 | LM38UU OP | 6 | 38 | 57 | |||
LM40UU | 6 | LM40UU AJ | 6 | LM40UU OP | 6 | 40 | 60 | |||
LM50UU | 6 | LM50UU AJ | 6 | LM50UU OP | 6 | 50 | 80 | |||
LM60UU | 6 | LM60UU AJ | 6 | LM60UU OP | 6 | 60 | 0 | 0 | 90 | 0 |
LM80UU | 6 | LM80UU AJ | 6 | LM80UU OP | 6 | 80 | 120 | |||
LM100UU | 6 | LM100UU AJ | 6 | LM100UU OP | 6 | 100 | 0 | 0 | 150 | 0 |
