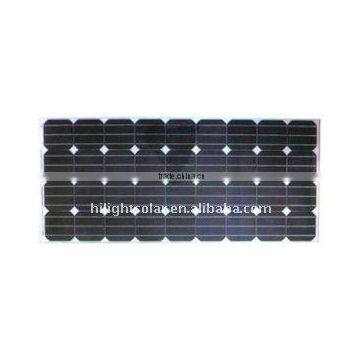

Solarmodule (60Wp)

FOB Price

USD $1.2 - $1.75 / Piece

2 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Solar Panel
Power:1W-300W
Warranty:20 years 80%, 25 years lifetime
Good delivery time & payment terms
Certificate:TUV,UL,CE

Monocrystalline Silicon Solar Panel /Solar Module Technical Parameter

ITEM	Monocrystalline Silicon Solar Panel /Solar Module
Maximum power (Wp)	60w	70w	75w	80w	85w	90w
Maximum power voltage (V)	16.3	16.47	17.2	17.2	17.6	17.8
Maximum power current (A)	3.68	4.25	4.36	4.65	4.82	5.06
Open circuit voltage (V)	20.6	21.2	21.6	21.6	21.6	21.6
Short circuit current (A)	3.99	4.52	4.87	5	5	5
Size of solar cells(mm)	125x125
Number of cells (Pcs)	36(4X9)
Size of module (mm)	119654035
Brand Name of Solar Cells	CEEG or JA SOLAR
Maximum system voltage (V)	1000
Temperature coefficients of Isc (%)	+ 0.1/ °C
Temperature coefficients of Voc (%)	-0.38/ °C
Temperature coefficients of Pm (%)	-0.47/ °C
Temperature coefficients of Im (%)	+0.1/ °C
Temperature coefficients of Vm (%)	-0.38/ °C
Temperature Range	-40°C~+80°C
Surface Maximum Load Capacity	60m/s(200kg/sq.m)
Allowable Hail Load	steel ball fall down from 1m height
Weight per piece (kg)	8
Junction Box Type	Junction box with TUV certificate
Length of Cables (mm)	as customer's demand
Cell Efficiency (%)	11.3%	12.3%	14%	15%	16%	16.8%
Module Efficiency (%)	10%	11%	13%	13%	14%	14.5%
Output tolerance (%)	±3%
Frame (Material, Corners, etc.)	Anodized Aluminum Alloy Frame
Standard Test Conditions	AM 1.5,1000W/m2, 25°C
Warranty	5 years product warranty and 20 years 80% of power,25 years lifetime
