DC12-24V 433Mhz wireless touch remote control RGB LED controller
- Fob shenzhen
- Credit Card
You May Like
-
Super thin RF 2.4G Wireless Touch RGB LED Remote Controller
-
DC12-24V wireless touch RGB LED controller for RGB led strip
-
2016 hot sale High voltage 44Key IR remote Controller
-
AC110-240V 4A High voltage 44Key IR remote Controller
-
Factory price high quality DC12-24V 3 Channel DMX512 Decorder
-
2016 Hot sale waterproof RF 8 Keys RGB led controller for RGB led strip
Product Details
Place of Origin | Guangdong, China | Brand Name | Green Lantern | |
Model Number | GL-RFTC-03 | Type | Other, RF touch led controller | |
Max. Load Power | 12V<216W,24V<432W | Voltage | Other, DC12-24V |
Product Description
DC12-24V 433Mhz wireless touch remote control RGB LED controller
FEATURES OF LED CONTROLLER
1. Capacitance and wireless touch technology, no mechanical wear, overcoming the lifespan problems caused by Physical buttons.
2. Visible color wheel, touched by finger, then What you see is What you get.
3. Auto adaptation of 12-24V DC working voltage and with input polarity protection function
4. The newest PWM control technology, delicate light performance, no flicker.
5.High power dimmer control MOS tube with stable and reliable performance, strong.power-drive ability with max. 18A of 3 channels.
6.Wireless RF control, free direction and long distance, more than 20m.
7. Multi-type memory functions for color, modes, speed, and brightness.
8.Smart appearance, standard input and output port, easy installation and high cost performance.

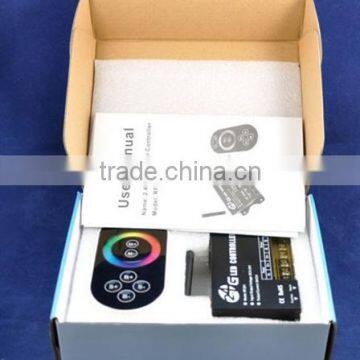

Prodcut pictrues for DC12-24V 433Mhz wireless touch remote control RGB LED controller
Technical parameters
1.Cotroller
Supply voltage | 12V-24VDC |
Loadable Current | 6A*3CH |
Output Channels | 3CH |
Output Power | 216W/432W(12V/24V) |
Controller Method | RF |
Connection Mode | Common Anode |
Changing Number | 18(7 static color modes,11dynamic chaning modes),1 wheel (64 color) |
Dimmering Mothod | PWM |
Grey Steps | 256 steps per channel |
Protection | The power input polarity protection |
2.Remote
Working voltage | 4.5VDC |
Remote Control Way | RF |
Launch Frequency | 433Mhz |
Controlable Distance | More than 20 meters |
Battery Types | 3 pcs AAA type batteries |
Standby power | 0.08mW |
Transmission power | 6mW |
Power consumption | 6mW |
Key Number | 6 touch keys,1 touch wheel |
