Home > Products > led high bay light > Bridgelux COB 200w high bay led with Meanwell driver

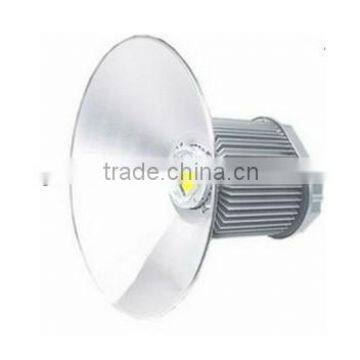

Bridgelux COB 200w high bay led with Meanwell driver
Negotiable
/ Piece
5 Pieces(Min. Order)
- shenzhen
- T/T Credit Card
You May Like
Product Details
| LED Light Source | cob led 200w | Warranty(Years) | 3 | |
| Input Voltage(V) | 86-265 | Lamp Power(W) | 200 | |
| Lamp Luminous Flux(lm) | 20000 | Lamp Luminous Efficiency(lm/w) | 100 | |
| Color Temperature(CCT) | Pure White | Working Temperature(℃) | -25, 65 | |
| Working Lifetime(Hour) | 50000 | Lamp Body Material | Aluminum | |
| IP Rating | IP65 | Certification | CE | |
| Place of Origin | Guangdong, China | Brand Name | Green Lantern | |
| Model Number | GL-HB-45D-200W |
Product Description
Bridgelux COB 200w high bay led with Meanwell driver
Specification :
| Item No. | GL-HB-45D-200W | |||
| Power | 200W | |||
| Input voltage | AC 85-265V/50-60Hz | |||
| LED source | Bridgelux 45mil G1 | |||
| LED QTY | 1PC | |||
| Total harmonic distortion | ≤9% | |||
| Power factor | >0.98 | |||
| LED efficiency | 115-125Lm/W | |||
| LED light luminous efficiency | 95-100Lm/W | |||
| Color temperature | WW: 2700-3500K | |||
| PW: 4500-5500K | ||||
| CW: 6000-7000K | ||||
| CRI(Ra) | >70 | |||
| IP grade | IP65 | |||
| LED junction temperature | ≤70°C | |||
| Ambient temperature | -40°C—45°C | |||
| Material | Aluminium + tempered glass(Can be PC lens) | |||
| Lifepsan | 50,000hrs | |||
| Warranty | 3years | |||
| Certification | CE/RoHS/FCC/EMC/LVD | |||
| Net/Gross wight | 11.5kg/13kg | |||
| Power : | 120w |
| Input Voltage: | AC85V~265V |
| Frequency Range: | 50Hz-60Hz |
| LED luminous efficiency: | 90~100lm/Watts |
| Lumens: | 10800-12000lm |
| Power Factor: | >0.95 |
| Color Rendering Index(CRI): | >75 |
| Led quantity: | 1PCS Bridgelux High Power COB led 120W |
| Color temperature: | 2700~3500k(warm white) 3500~6000k(pure white ) 6000~7000k( cool white) |
| Color Rendering Index(CRI): | Ra>68(WW),Ra>75(PW,CW) |
| Beam angle | 45degree |
| Working Temperature: | .-25~+50°c |
| Wateporoof IP Grade: | IP 65 |
| Housing material | Aluminium |
| Life-span: | 50000H |
| Warranty: | 3 years |
| Power : | 100w |
| Input Voltage: | AC85V~265V |
| Frequency Range: | 50Hz-60Hz |
| LED luminous efficiency: | 90~100lm/Watts |
| Lumens: | 9000-10000lm |
| Power Factor: | >0.95 |
| Color Rendering Index(CRI): | >75 |
| Led quantity: | 1PCS Bridgelux High Power COB led 120W |
| Color temperature: | 2700~3500k(warm white) 3500~6000k(pure white ) 6000~7000k( cool white) |
| Color Rendering Index(CRI): | Ra>68(WW),Ra>75(PW,CW) |
| Beam angle | 45degree |
| Working Temperature: | .-25~+50°c |
| Wateporoof IP Grade: | IP 65 |
| Housing material | Aluminium |
| Life-span: | 50000H |
| Warranty: | 3 years |
| Power : | 80w |
| Input Voltage: | AC85V~265V |
| Frequency Range: | 50Hz-60Hz |
| LED luminous efficiency: | 90~100lm/Watts |
| Lumens: | 7200-8000lm |
| Power Factor: | >0.95 |
| Color Rendering Index(CRI): | >75 |
| Led quantity: | 1PCS Bridgelux High Power COB led 120W |
| Color temperature: | 2700~3500k(warm white) 3500~6000k(pure white ) 6000~7000k( cool white) |
| Color Rendering Index(CRI): | Ra>68(WW),Ra>75(PW,CW) |
| Beam angle | 45degree |
| Working Temperature: | .-25~+50°c |
| Wateporoof IP Grade: | IP 65 |
| Housing material | Aluminium |
| Life-span: | 50000H |
| Warranty: | 3 years |
| Power : | 70w |
| Input Voltage: | AC85V~265V |
| Frequency Range: | 50Hz-60Hz |
| LED luminous efficiency: | 90~100lm/Watts |
| Lumens: | 6300-7200lm |
| Power Factor: | >0.95 |
| Color Rendering Index(CRI): | >75 |
| Led quantity: | 1PCS Bridgelux High Power COB led 120W |
| Color temperature: | 2700~3500k(warm white) 3500~6000k(pure white ) 6000~7000k( cool white) |
| Color Rendering Index(CRI): | Ra>68(WW),Ra>75(PW,CW) |
| Beam angle | 45degree |
| Working Temperature: | .-25~+50°c |
| Wateporoof IP Grade: | IP 65 |
| Housing material | Aluminium |
| Life-span: | 50000H |
| Warranty: | 3 years |
| Power : | 50w |
| Input Voltage: | AC85V~265V |
| Frequency Range: | 50Hz-60Hz |
| LED luminous efficiency: | 90~100lm/Watts |
| Lumens: | 4500-5000lm |
| Power Factor: | >0.95 |
| Color Rendering Index(CRI): | >75 |
| Led quantity: | 1PCS Bridgelux High Power COB led 120W |
| Color temperature: | 2700~3500k(warm white) 3500~6000k(pure white ) 6000~7000k( cool white) |
| Color Rendering Index(CRI): | Ra>68(WW),Ra>75(PW,CW) |
| Beam angle | 45degree |
| Working Temperature: | .-25~+50°c |
| Wateporoof IP Grade: | IP 65 |
| Housing material | Aluminium |
| Life-span: | 50000H |
| Warranty: | 3 years |
Feature :
1.Wide range of input voltage.
2.Work perfectly in the high humidity environments.
3.NO delay start,no glare,no humming.
4.Long life,energy savings.
5.High brightness and led modules
6.high lumen,high power,high efficiency constant current drive.
7.High-purity Aluminium relfector,heat sink and hanging hook.
Applications:
shop
2. factory
3. warehouse
4. highway toll stations
5. gas stations
6. supermarkets, stadiums and other needs of lighting places
