milestone compatible PTZ Camera 150M IR outdoor sdi speed dome ptz hd camera 1080p cctv sdi

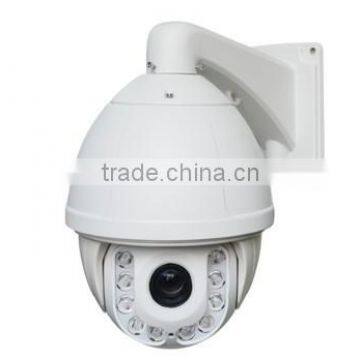

HD-SDI IR High Speed Dome

Item

Dome Model

ESD81T-18H108

* Camera Module inside

18X 1080P SONY CMOS - FTZ18H108

Featuers

* 7” Metal case
* 150M IR. PWM Smart IR technology enables clear picture in darkness.
* Build-in radiator reduced the temperature greatly and enhanced anti-fog ability
* Stable current and smart temperature control tech
* Operation protection in low temperature as low as -40°C, specially designed for cold area.
* External DIP configuration for add. & bps setting
* Configuration auto save function on power OFF

Pan Speed/Range

360° endless @ 0.1-270°/s

Tile Speed/Range

-5~90° (Auto Flip) @ 0.1-270°/s

Manual Operation Speed

High / Middle / Low

PTZ position display

ON / OFF

Digital Zoom

Support, change speed based on zoom

Scan between 2 presents

Support

Preset

220

Patrol

4, Max.16 guard points, dwell time user selectable

Pattern Scan

4

Park action

Support

Private Zone

 --

Audio / Video output

CVBS, SDI SMPTE 292M standard

OSD Menu

English, Spanish etc.

RS485 protocol

Pelco-D/P

Alert

Support

Power Supply

AC 24V 3A

Power consumption

25W Max, 30W Max with IR ON

Working Condition

-40°C~60°C,less than 90%RH (frostless)

Weather Proof

TVS6000V lightning protection, surge protection and voltage transient protection, IP66 outdoor

Bracket Options

Wall-mount / Hanging-mount

Package Size (mm)

300*300*420

G.W. (kgs)

7.2

Resolution

1080P

Communication mode

RS232

Interface

YUV-36pFPC / LVDS-30p

Communication Protocol

HITACHI / SONY VISCA

Day & Night

Color / B&W / Auto

Sync System

Inter-sync

Mini. Illumination

Color: 0.1 Lux; IR B&W: 0.01 Lux

Video output

YCbCr 4:2:2

SNR

≥50dB(AGC OFF)

Image Sensor

1/3" SONY CMOS

Effective pixels

2.1M 1080P

Scan Mode

progressive scan

IRCUT

Day/Night Auto Switch

AUTO IRIS

Support

FNO./Focal Length

f=4.7mm~84.6mm  F1.6(W)~2.7(T)

FOV (W~T)

H:54.8°~3.4°  V:41°~2.5°

OSD Menu

English

Fog-through

Support

Exposure Mode

Auto/Manual

AWB

Auto

Focus Mode

Auto/Manual

Picture Effects

Auto/Color/B&W/Negative

AGC

Auto

Contrast

Adjustable

Saturation

Adjustable

Mirror Image

Support Horizontal + Vertical

Electronic Shutter

1/30s~1/10, 000s

Edge Ill. Compensation

Support

Image Rollovers

Support

WDR

D-WDR

DNR

2D DNR

Unit Size

50(W)* 60(H)* 90(L) mm

N.W.

270g

Working Condition

-10°C~50°C, 10%RH~60%RH

Power Supply

DC 12V±10%

Power consumption

2.5W MAX
