Home > Products > Security Camera > 18X 720P 50FPS 60FPS SONY Exmor CMOS Zoom Camera Module for PTZ Dome Camera / PTZ Camera / High speed dome camera / CCTV camera

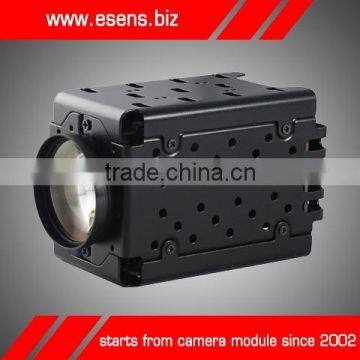

18X 720P 50FPS 60FPS SONY Exmor CMOS Zoom Camera Module for PTZ Dome Camera / PTZ Camera / High speed dome camera / CCTV camera
- Shenzhen Shekou
You May Like
-
Sony CMOSHD SDI camera ,10x optical,1080p HD SDI box CAMERA in cctv camera
-
milestone compatible PTZ Camera 150M IR outdoor sdi speed dome ptz hd camera 1080p cctv sdi
-
milestone compatible PTZ Camera 650TVL CCD excellent image outdoor 18x optical zoom Network ptz camera waterproof CCTV camera
-
milestone compatible PTZ Camera 600tvl 4-inch Mini High-speed Dome PTZ Cameras, Security camera 12V DC/1A Power Supply
-
650tvl ptz camera module zoom camera module for PTZ camera ,IP camera ,Box camera ,CCTV camera
-
Sony CMOS HD SDI camera , 18x optical,1080p HD SDI box CAMERA in cctv camera
Product Details
| Place of Origin | Guangdong, China | Brand Name | ESENS | |
| Model Number | FTZ18SH72 | Type | Digital Camera | |
| Style | Dome Camera | Sensor | CMOS | |
| Technology | Pan / Tilt / Zoom | Special Features | Other |
Product Description
SPECIFICATION | Main Solution | SONY iMX138 - 25/30/50/60 fps |
18X 720P | ||
Model No. | FTZ18SH72-T2 9600bps Sony Visca; FTZ18SH72-T6 4800bps (Even Parity) Hitachi | |
Resolution | 720P | |
Communication mode | RS232C | |
Interface | YUV-36pFPC / LVDS-30p | |
Communication Protocol | HITACHI / SONY VISCA | |
Day & Night | Color / B&W / Auto | |
Sync System | External-sync | |
Mini. Illumination | Color: 0.1 Lux; IR B&W: 0.01 Lux | |
Video output | YCbCr 4:2:2 | |
SNR | ≥50dB(AGC OFF) | |
Image Sensor | 1/3" SONY CMOS iMX138 | |
Effective pixels | 1.0M 720P | |
Scan Mode | progressive scan | |
LENS | IRCUT | Day/Night Auto Switch |
AUTO IRIS | unsupported for the time being | |
FNO./Focal Length | f=5.0mm~90.0mm F1.6(W)~3.0(T) | |
FOV (W~T) | H:52.5°~3.0° V:40°~2.3° | |
FUNCTION | OSD Menu | English |
Fog-through | Support | |
Exposure Mode | Auto/Manual | |
AWB | Auto | |
Focus Mode | Auto/Manual | |
Picture Effects | Auto/Color/B&W/Negative | |
AGC | Auto | |
Contrast | Adjustable | |
Saturation | Adjustable | |
Mirror Image | Support Horizontal + Vertical | |
Electronic Shutter | 1/30s~1/10, 000s | |
Edge Ill. Compensation | Support | |
Image Rollovers | Support | |
WDR | D-WDR | |
DNR | 2D DNR | |
OTHER | Unit Size | 50(W)* 60(H)* 90(L) mm |
N.W. | 270g | |
Working Condition | -10°C~50°C, 10%RH~60%RH | |
Power Supply | DC 12V±10% | |
Power consumption | 2.5W MAX |
As a sister company of PEARL Clock, backup by PEARL group with yearly turn over more than 800 million RMB. We invested heavily in the CCTV camera module since year 2003. As the pioneer of zoom camera module. We are well named in this industry in China.
Thanks to the experienced excellent engineers born by our group and the teams we enrolled from the leading companies of this industry in China. Our products quality and goods value went forward to a great stage after 2010, especially after the chief engineer joined the team. We are going ahead for the top rank in CCTV industry in China.
Our products is well know for stable quality and good price, the products have been widely adopted in the fields such as financial, traffic, power plant, security institutions, medical care, harbor, intelligent community, factories and enterprises etc.
Stable quality is our top priority for production. We also adopted the updated technic and technology for our R&D job, with innovation and optimization, to meet the demand of the market.
