Thick Film Ceramic Circuit Board
- Chengdu Air Port // Shanghai Sea port
- T/T Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Sichuan, China | Brand Name | JIABANG | |
| Model Number | Customized | Type | Insulating Ceramics | |
| Material | Other, Alumina, 75% to 99.8% alumina |
Product Description

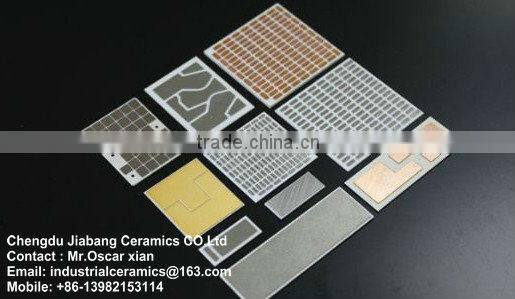

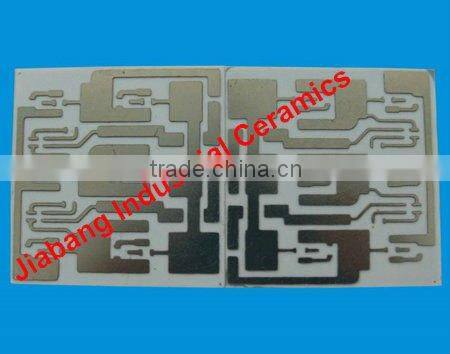

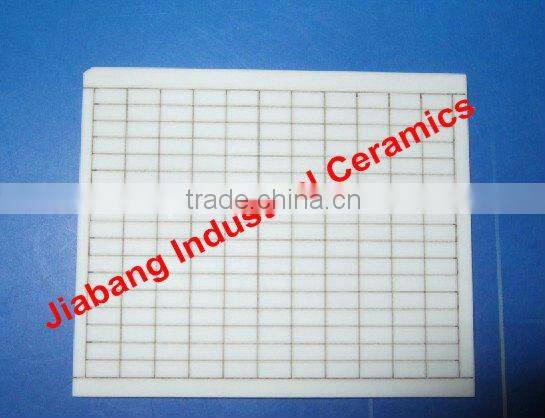

Thick Film Ceramic Circuit Board
Features
1.Chemically inert, anti-acid, anti-alkaline
2.Superior reliability and durability
3.Excellent resistance to heat. Maintain the mechanical strength in high temperature circumstances
4.The Ceramic Circuit Board can be made according to the customers' requirements.
Regular thickness
0.25mm 0.28mm 0.45mm 0.5mm 0.635mm 1.0mm 1.5mm 1.8mm 2.0mm
Metallization
The surface can be covered a lay of metallization,such as Ag, Pd-Ag,Mo-Mn, Ni-plating with good tensile strength: Mo-Mn thickness: 25~40μm,Ni thickness:3~7μm, Tensile strength≥120MPa
Please let us know the 5 important things of your need for product.
1. What size of product do you need?
2. What about is the allowable tolerance?
3. what is the material do you need for the ceramic product?
4. where do you use such substrate ?
5. How much is your quantity demand?
#If you can give us your technic drawing,we will be very appreciate.
If you need more information or have any question,pls kindly let us know and we will reply to you A.S.A.P!
