alucobond pvdf aluminium composite panel price

Product Name :

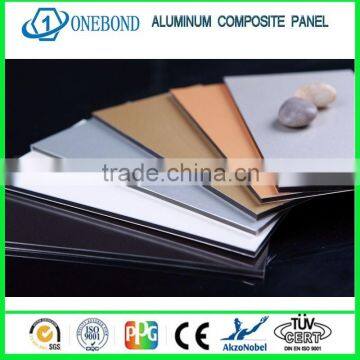

                PVDF ALUMINUM COMPOSITE PANEL

Brief Introduction:

              PVDF ACP is ALSO a kind of new green composite material which is compounded of two layers of aluminum sheets and nontoxic low-density polyethylene (LDPE) by macromolecule adhesive film of American Dupont Company through thermo compression. But its coating of the upper aluminum sheet is Polyvinylidene Fluoride (PVDF, 70% CONTENTS) with better weather resistance, impact resistance, UV resistance, etc than PE ACP.

Product Specification :

   1) Standard Size: 1220mm X 2440mm X 4mm

         a) Width :1000mm,1220mm, 1240mm,1250mm, 1500mm,1575mm,2000mm, max width 2200mm ,or other size according to your request .

         b) Length :2440mm,2000mm,3000mm,4500mm,5000mm,5500mm, or other size according to customers' demand

2)Thickness:

    a) Total Panel thickness:1mm,2mm,2.5mm,3mm,4mm,5mm,6mm,8mm, max 10mm

    b) Aluminum thickness  :0.08mm,0.15mm,0.18mm,0.21mm,0.25mm,0.3mm,0.4mm,0.45mm,0.5mm

3)Coating:  Polyester and PVDF

    a)  PE coating :PE guarantee 10 years

    b) PVDF coating :PVDF guarantee 15-20 years. USA PPG PVDF coating ,Sweden Becker PVDF coating

    c) Matte and High Gloss

4) Macromolecule Film : USA Dupont macromolecule sticking film or Japanese MITSUBISHI macromolecule sticking film

5) Aluminum Alloy :AA1100,AA3003,AA5005, 1000 series,3000 series,5000 series.

6) Core : Polyethylene ,Type LDPE

7) Temper: H16 ,H18,H24

8) Coating Layer Thickness: ≥25μm

9) A2 Fire-class core :Mineral Fire Retardant & LDPE

10) Color: Wooden , Marble , Chameleon , Spectra codlors Series ,VIVID, Diamond and so on .

Characteristics:

1) Excellent fireproof property

2) Super peeling strength

3) Perfect cold resistance performance

4) Excellent surface flatness and smoothness

5) Superior weather, corrosion, pollutant resistance

6) Even coating, various colors

7) Superior impact resistance

8) Lightweight and easy to process

9) Easy to maintain

Application Range:

  It is mainly used for exterior decoration, including exterior wall curtain, important project high-level decoration, old building outside wall renovation, etc..
