Product Details
| Place of Origin | Jiangsu, China | Brand Name | HANCONG | |
| Model Number | J6AP |
Product Description

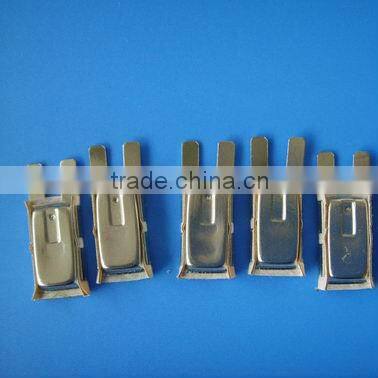

J6AP auto motor Thermal protector
Thermal protector, thermal switch, therm cutoff
Work principle:
J6AP series thermal protector is with double protection against over current and over heat. It is of snal action model. Its essential part is temperature sensitive bimetal. When over current or over heat occured, the contacts will become open to cutoff the circuit to protect against the appliance from damage. When the temperature cools down, the contacts will be closed again to resume the circuit.
Application:
widely used to protect against over current and over heat for auto motor such as wiper motor, window motor, blower motor, seat adjuster motor, lock motor etc. and other low-voltage appliance.
Main feature:
Sensitive both to current and heat, snap action
Open temperature: 50C--160C ( in 5C increasement)
Rating: 15A/DC30V, 30A/DC15V, 10A/250VAC
Tripping current: 3C--30A (@25C)
Tripping time: 4S--10S
Customers special request acceptable

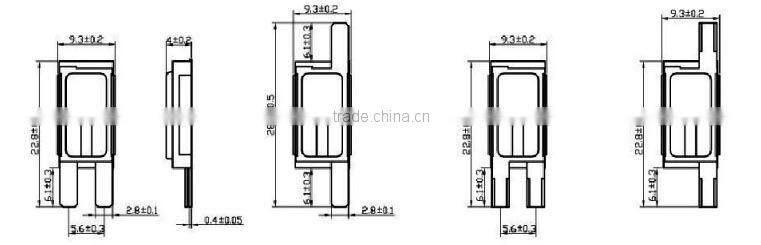

The terminals can be on same side or opposite sides. pls refer to below congiguration and dimension.
