17AM Thermal Protector, Lighting Thermal Protector,thermal Protector 250v 10a

17AM thermal protector, lighting thermal protector,thermal protector 250v 10a, thermal cutoff, thermal cutout, overload protector,  bimetal thermostat switch, temperature limiter

Snap action thermal protector , automatic reset type with UL,VDE, CB, CCC , Rohs compliant

Work principle:

17AM thermal protector, lighting thermal protector,thermal protector 250v 10a is a temperature automatic response devide and is connected in series to the winding of motor. The contacts open on temperature rise and reset after the temperature drops down.

Application:

17AM thermal protector, lighting thermal protector, thermal overload protector has the following characters: the structure is advanced, the volume is very small, the action is sensitive, large in contact capacity, long life and so on. It’s widely used and protect electric motor; ballast of fluorescent lamp;transformer; DC motor of automobile; integrated circuit and general electric appliance.

Main features:

 Double protection of over current and over heat

Snap action, normal closed, auto reset

Contact rating: 125VAC 16A/ 20VDC 20A/ 250VAC 8A /250VAC 9A
Thermal switch dimension:23.5X10.5X4.7mm

Open Temperature: 50C to 180C,  in 5C increasement

Tolerance for open temperature: +/-5C

Cable:Stardard:AWG18, 65mm long, special requests accepted

Terminals on same side or on opposite sides.

Suitable for most varnishing processes

Approval: UL,VDE, CB, CCC, Rohs compliant

Advantage:

Advance equipments, automatic production line, large production capacity and high quality guaranteed.

 Dimension:

A type:

B type:

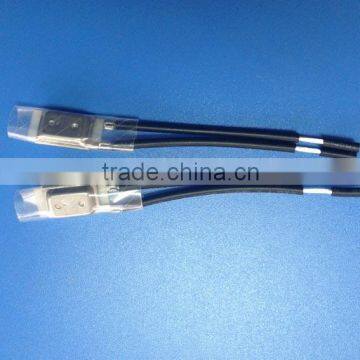

A type: with leadwire and with insulation sleeve, the cable and length can be made according to customer's request:

Tripping Current Vs Tripping Time at the Ambient Temperature of 25℃

Ultimate Tripping Current Vs Ambient Temperature ( for reference only)

Production Equipments:

Bimetal forming machine:

Stabilization Oven:

Auto welding machine:

Auto assembly machine:

Testing machine:

Goods ready to be delivery:

Storage Condition:

During the transport and storage, the packages can not be exposed to snows or rains, and should avoid strong force outside.  It shouId be stored in a dry and ventilative warehouse.

Customers' special requests accepted. Pls contact us for more.
