Pipeclamps

Specifications

For fastening:

Pipe lines to walls,cellings and floors in the sanitary and heating area.

Properties:

Avantages:

1.It enables one-hand mounting.

2.A pipe is preassembled by mere snapping.

3.The quick-clamping system protects the clamp against uncontrollable opening after snapping.

4.Compact structural design of the clamp enables simple and full piping insulation without larger overlap in the area of the toggle and closing device. All this is possible even using a small thickness of insulating material.

5.It prevents the action of electrolysis.

6.Single-screw pipe clamps with a snap lock satisfy the highest requirements while mounting on walls, ceilings and floors but also in connection with pipes used in sanitary installations.

7.One-piece hinged pipe clamp with patented rapid locking and readjusting mechanism.

8.Compact design for close installation and easy pipe insulation.

9.Locking screw with large combination recessed slot secures against loss.

10.Pipe clamp with rubber inlay.EPDM rubber resistant to aging.

Application:

1.Used for mounting of pipes to the walls (vertical / horizontal),ceilings and floors

2.For Suspending Stationary Non-Insulated Copper Tubing Lines

3.Being fasteners for pipe lines such as heating,sanitary and waste water pipes;to walls,ceilings and floors.

4.Side screws are protected against loss during assemble with the help of plastic washers

Usage:

1.steel pipes

2.cast iron pipes

pper pipes

4.glass pipes

5.plastic pipes

Field:

1.sanitary and heating installations

2.gas distribution systems

3.air conditioning systems

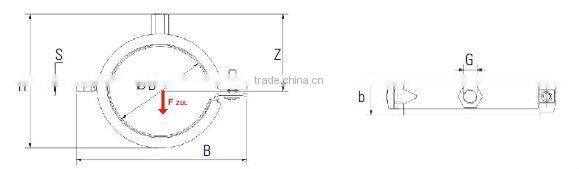

Technical data:
