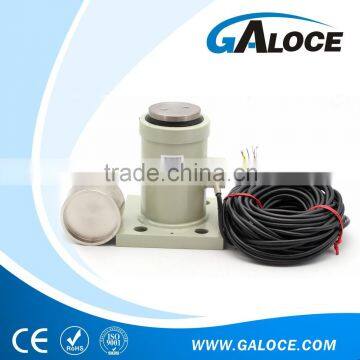

GCS702 Chinese waterproof column load cell

Specification:

Range (T): 10, 20, 30, 40, 50

Insulation resistance (MΩ): ≥5000 (100VDC)

Accuracy: C2/C3

Temp. effect on span (%F.S/10℃): ±0.017/±0.011

Comprehensive error (%F.S): ±0.03/±0.02

Temp. effect on zero (%F.S/10℃): ±0.023/±0.015

Rated output (mV/ V): 2.0±0.002

Compensated temp. range (℃): -10~+40

Creep (%F.S/30min): ±0.023/±0.016

Operation temp. range (℃): -30~+70

Zero balance (%F.S): ±1.5

Excitation voltage (V): 5-12 (DC)

Input resistance (Ω): 700±5

Max. excitation voltage (V):18 (DC)

Output resistance (Ω): 700±5

Safe overload (%F.S): 150

Ingress protection: IP66 or IP68

Ultimate overload (%F.S): 200

Free consult support

          24/7 free product relating consult through Alibaba Trade Manager, email, telephone, Skype, Whatsapp, Wechat and other measures.

        All staffs of GALOCE are open, honest and communicative to customers with respect.

Customization

         Provide OEM service, most products are customizable (please consult with us for details).

After sale service

         One year warranty since product shipped out. Fully technical support for application.

1. What essential information is needed for product selection?

         Weight/ load range (in g, kg, ton or lb), application, material (stainless steel, alloy aluminum, etc.) and other requirement of customers.

2. How will you ensure quality of your products?

         A. All products had been treated through strict process according to ISO9001 standard and checked by IQC and OQC department before shipping.

         B. One year warranty and life time free consult to any needs related with our product.

3. What terms of payment is acceptable?

         T/T, L/C, trade assurance of Alibaba, Secure payment, West Union, Paypal, Money Gram, etc.

4. When production could be arranged?

         As soon as the payment was received.
