Chzjcz/3 Position Switch On-off-on Oval Boat Switch Rocker Switch With
- NINGBO
- T/T Credit Card
You May Like
-
Mini Toy Rocker Switch,125V AC Long Life Electric Push Button Micro Switch With CE, ROHS Certificate Rocker Switch
-
Toy Rocker Switch,electronic Switch,round Type Rocker Switch,t85 2pin/*/*/ Chzjcz/*-rocker Switch
-
Rocker Switch 20A,AC Rocker Switch With Automatic Sensor Light,overload Protected Rocker Switch
-
Boat Switch,rocker Switch Mini Switch On-off Switch,electronic Power Rocker Switch
-
6A Illuminated Switch,Waterproof Electrical 16a Rocker Switch 250v T125 for Electric Fireplace
-
Kcd1-102-5 Spdt Rocker Switch,rocker Switch T85,AC Rocker Switch With Automatic Sensor Light
Product Details
| Place of Origin | Zhejiang, China | Brand Name | ZJCZ | |
| Model Number | CZ802AA1 BRA1 | Max. Current | 10A | |
| Max. Voltage | 250V | Mechanical Life | 10000 Cycles |
Product Description
Waterproof round rocker switch,boat switch :
| SPEC | DETAILS |
| The contact resistance | ≤ 50mΩ |
Rating | 6A 250V AC/10A 125V AC |
Withstand Voltage | 1500V,AC/MIN |
Insulation Resistance | ≥100mΩ |
Dielectric intensity | ≥1500V AC/MIN |
Rated Load | 2/8A 250V AC |
Temperature | -25~85.c |
Mechanical life | >30, 000 cycles |
Electrical life | >1, 0000cycles |
Safety standered approval | UL, CE, VDE, ROHS |
| Panal size | 19mm diameter |
| Parts | Material |
| BODY | Nylon 66 UL94 V-2 |
| ROCKER | Nylon 66 UL94 V-2 |
| CONTACT | Coin silver, silver plated |
| ILLUMINATED | Neon lamp or Incandescent bulb |
| TERMINAL | Silver plated brass |
| FOUNCTION | ON-OFF ON-OFF-ON and with reset |

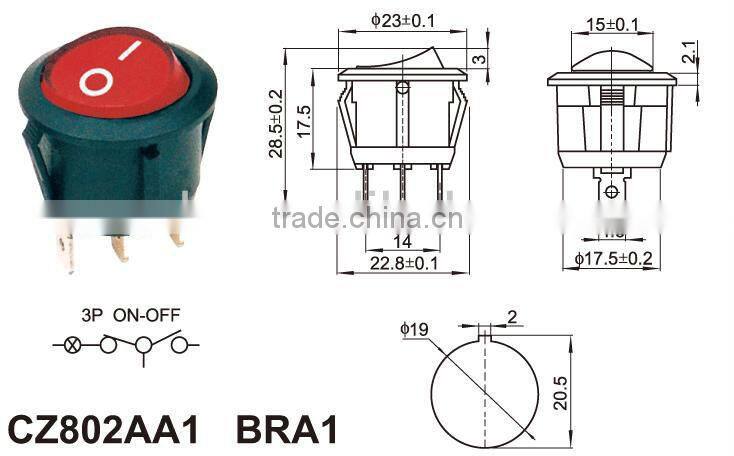

Drawing :
Waterproof round rocker Switch
About rocker switch :The rocker switches available in both illuminated and non-illuminated versions, are designed to snap into the panel.
Application: Our switches are widely used in the fields of small household products, communication equipment, energy generator, electric tools, table lamp, electric motor, electric motor car, electric toy, UPS, medical facilities, socket, etc.
About us :Yueqing Chuangzhan Electronics Co.,Ltd is a professional manufacture of rocker switch. We can offer OEM/ ODM sevices. We make the moulds and the moulded parts by ourselves to ensure the switch quality and reduce cost. We can supply with different standard rocker switch to meet different customers' demands.
About quality control: We will inspect supplied material, production process and final product, we completely make quality control for every pass with inspections including withstand voltage, insulating resistance, conductor, dimension, external appearance, etc. Meanwhile random sampling is taken for inspections such as products' exotherm, environmental protection and electrical life.
About brand: We hnve our own brand "ZJCZ" , and also , we can design the brand for our clients.
About Certificate: our company has passed ISO9001: 2008, and the rocker switches have passed TUV,CE and have ROHS test reports , VDE and UL is in examing and verifying ~
