Home > Products > Stretch Film Machine > HOT SALE! DF-1000 Single/Double-Layer co-extrusion stretch film machine
HOT SALE! DF-1000 Single/Double-Layer co-extrusion stretch film machine
- NINGBO/SHANGHAI
- T/T Credit Card
You May Like
Product Details
Condition | New | Application | Film | |
Plastic Processed | PE | Screw Design | Other, single or double screw | |
Automatic Grade | automatic | Place of Origin | Zhejiang, China | |
Brand Name | GUOTAI | Model Number | DF-1000 | |
Voltage | 380v | Power(W) | 140kw | |
Dimension(L*W*H) | 1000x4000x3000mm; 1100x4500x3000mm | Weight | 8T | |
Certification | CE ; ISO9001:2000 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Stretch Film making Machinestretch extrusion
Stretch Film Machine
Cling Film Machine.

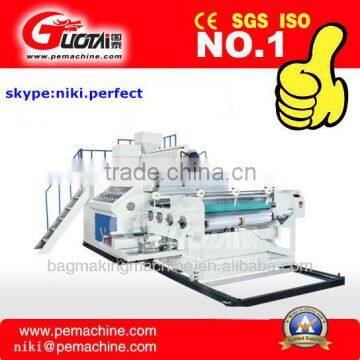

DF-1000 Single/Double-Layer co-extrusion stretch film machine
stretch extrusion
Stretch Film Machine
Cling Film Machine
Characteristic:
1.Screw and cylinder are all made of 38CRMOALA alloy and treates by nitrogen,It has an advantage of corrosion resistance and endurance etc.
2.The cooling device adopts cycle water cooling provide the best transparent effect of the stretch film.
3.Take-up equipment adopts with friction type rewinding and equipment with edge correcting device to ensure the quality.
Specify:
The Single/Double-layer Co-extrusion Stretch Film Machineset is used for producing LDPE or LLD PE.stretch film, which is equipped with single screw, the extruded stretchsides adhesive, If the machine adopts double screws, the two hoppers should use different type of material, one side of the extruded stretch film is adhesive and the other side is normal, It is widely used for packing architecture and hardware parts etc.
*Optional Equipment:
1.Autoing Loader
2. Dry hopper
3. Air shift
4.Auto winder changer
5. Auto screen changer
6.Glue pump
DF-1000 Single/Double-Layer co-extrusion stretch film machine
Main Technical Variables
Item/Model | 1250mmDouble-layer | 1250mmSingle-layer |
Screw diameter(mm) | 65*2 | 75 |
L/D ratio of screw (L/D) | 30:1 | 30:1 |
width of die head (mm) | 1250 | 1250 |
Width of finished products(mm) | 1000(500*2roll) | 1000(500*2roll) |
Thickness of finished products (mm) | 0.008-0.05 | 0.008-0.05 |
Structure of film layers | A/B | -- |
Max output (kg/h) | 100 | 100 |
Linear speed of machinery (m/min) | 50-100 | 50-100 |
Total power (KW) | 140 | 120 |
Overall dimensions (L*W*H)m | 10*4*3 | 11*4.5*3 |
Weight (T)(About) | 8 | 8 |
