Product Details
| Place of Origin | Zhejiang, China | Brand Name | CHZJCZ | |
| Model Number | CZ864C1 | Type | Extension Socket | |
| Grounding | Standard Grounding | Rated Voltage | 250V | |
| Rated Current | 10A | Application | Residential / General-Purpose |
Product Description
desk power socket :
Rated current,voltage: 10A 250V AC
Insulation resistance: ≥ 100MΩ
Contact Resistance :≤0.03ΩWithstand Voltage:AC 1500V(50HZ)/min
Dielectric strength: ≥ 1500V AC / min
Temperature: -25~85oC
Insert and Extract Force: 5-30N
Life: ≥ 10 million
1.small size suitable for high density mounting.
2.Much thinner and lighter than conventional products.
3.Contact sealed construction offers a highly reliable switch.
power socket Applications
1 automotive and appliance markets,
2 industrial process controls,
3 instrumentation,
4 electronic test equipment,
5 consumer grade products,
6 telecommunications.
Some specific areas applications are of:
· Garage door openers
· Automotive alarm systems
· Pagers
· Remote controls
· Joy sticks
· Radar detectors
· Cellular & PCS phones
· Digital phones
· Compact disc players
· Printers

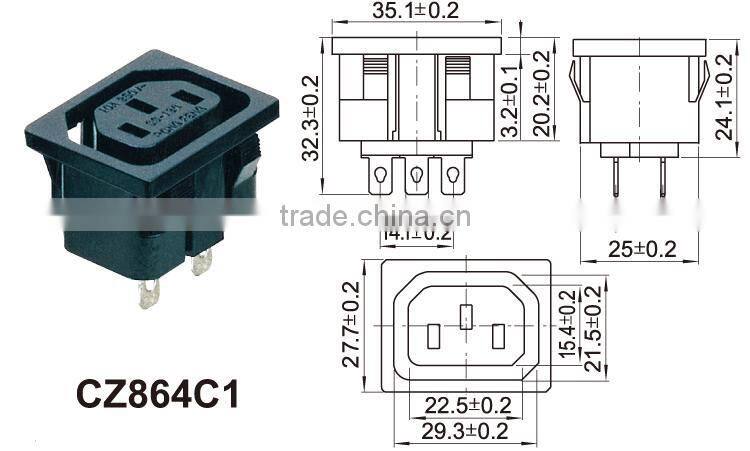

Drawing of socket:
About the products
(1)About 600 types of switches(tact switches,slide switches,multifunction switches,five way switch,push button switch,detector switch,encoder switch,etc) and new design produced every month with huge stock for your reference
(2).Minimum order 1000pcs and mixed order is available
(3).The discount depends on your order quantity
(4).Good quality with competitive price
(5).Free samples for your testing
(6).Various operating force ,height and colour for one switch for your choice
