Home > Products > Micro Switch > Waterproof Micro Switch,Push Button Micro Switch for Small Appliance
Waterproof Micro Switch,Push Button Micro Switch for Small Appliance
US$ 0.05 - 0.08
/ Piece
500 Pieces(Min. Order)
- NINGBO
- T/T Credit Card
You May Like
-
Stainless Steel Lever Micro Switch,Miniature Switch,waterproof Micro Switch T125 for Mobile Phone
-
Micro Switch / Pushbutton Switch / Coffee Machine Key Switch / Blower Micro Switch / Rain Type Travel Switch / Water Dispenser s
-
16A Micro Switch,Stainless Steel Lever Long Life Micro Switch/Types of Micro Switches
-
Micro Power Switch for Household Appliances,Snap Action Switch for Oven
-
Miniature Sensitive Micro Switch,stainless Steel Roller Lever Electronic Micro Switch
-
Arcade Game Machine 16A 250VAC Pushbutton Micro Switch Zippy Micro Switch Hot Sale Micro Limit Switch
Product Details
| Place of Origin | Zhejiang, China | Brand Name | CHZJCZ | |
| Model Number | KW11C K B R005 C | Max. Current | 3A | |
| Max. Voltage | 250V | Operating Temperature | -45-85' |
Product Description
Product Description
micro level switch Details :
*Specification:
1. Rating: 1A 125V AC
3A 3V
2. Contact R: 10mΩ Max
3. Insulation R: 100MΩ Min
4. Dielectric strength: 1500VAC
5. Setting Temperature: -25°C+120°C
6. Electrical life: 100,000 Cycles
7. Machine Life: 1,000,000 Cycles
8. Operation Force: 0.3N~3.5N
* Please refer to the following websites for more info.

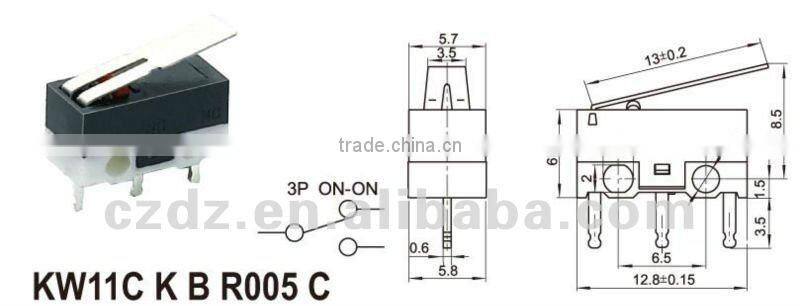

* Drawing picture:
