Water-Cooled Programmable Altitude Test Chamber for Reliability and Stability Testing

 Water-Cooled Programmable  altitude test chamber for reliability and stability Testing

High Altitude Simulation Test Chambers test for the instruments and meters, electrical products, materials, spare parts, equipments, etc at a low pressure, high temperature, low temperature, under the effect of single factor or multiple factors at the same time. Simulation of high-altitude conditions like might be found in mountainous regions. Test for electric performance parameters of the specimen. Mainly used in aviation, aerospace, information, electronics and other industries.

Standard configuration:

Two sample holders; an observation window; φ25 or φ50 cable hole.

Optional parts:

Communication interface RS232 or RS485, logger, micro printer, remote temperature and humidity control system (including printers, communications software, computer), mobile casters.

Structure:

Overall structure, new test chamber designed very easy to operation and maintenance:

Water and electricity system separation design;

External humidifying design;

Three levels of overheat protection, easy access for refrigeration servicing, etc.

Material:

TRUMPF machines for sheet metal processing;

Tecumseh, Bock Compressor;

High quality electronic components (e.g. DANFOSS, ALCO, RANCO, SPORLAN, SAGINOMIYA, Schneider solenoid valve)

Standards Implemented and Met

GB10592-89 Technical requirements for high and low temperature test chamber

GB2423.1-1989 Low temperature test

GB2423.2-1989 High temperature test mode

Thermostat regulator balanced manner BTPC thermostat (regulator) mode

Ambient temperature: 5 ℃ ~ 35 ℃; Humidity: ≤90% RH; Atmospheric pressure: 86-106kPa

Material cold rolled steel shell, surface spray

SUS304 stainless steel inner tank

Rigid polyurethane foam insulation foam glass +

Regulator heater Nichrome heater

Fan shaft seal magnetic fluid flow fan

Refrigeration machinery contraction two binary cascade refrigeration (cooling)

Refrigeration compressor: Semi-hermetic compressors

Refrigerant:  R404a / R23

Controller Display: 7 "color screen, liquid crystal display (LCD)

Run the program mode, setting mode

Setting mode Touch (piezoelectric)

Program capacity 32 programs, each up to 800 steps (segments), maximum 999 cycles

Setting range operating temperature range adjustment device according to (limit 5 ℃, the lower limit of -5 ℃)

Display Resolution time: 0.1min; temperature: 0.1 ℃; pressure: 0.1kPa

Enter thermal resistance, pressure sensors

Anti-windup PID control mode

Power: AC380 (1 ± 10%) V (50 ± 0.5) Hz three-phase four-wire protective earth

Maximum power current: (A) 35 35

Safety devices

1. Power owed to reverse protection

2. No fuse switch

3. Dry compustion prevention switch

4. The water protection switch

5. Over-temperature protection

6. Motor overload protection

7. The high-pressure compressor protection

8. The compressor overheating protection

9. The compressor overcurrent protection

10. The vacuum pump overcurrent protection

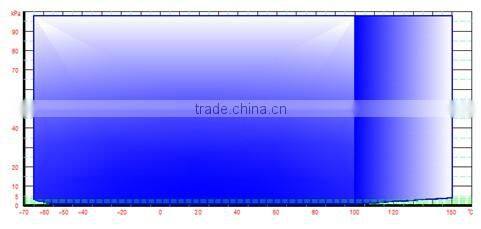

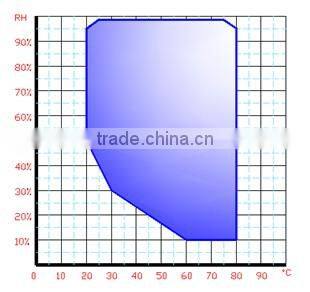

1. Temperature range from -70 to 170℃

2. Altitude range ground to 100,000 feet

3.External pressure type box body structure and stainless steel tank design, rational air circulation system and scientific layout of heating, refrigerating system.
4.Adopts international brand of imported parts for cooling system to improve operation reliability
5. High precision and stable performance with touch screen controller, friendly Man-Machine interface.
6. Multiple layers of safety device to easy maintenance.

7.Viewing window and cable ports available

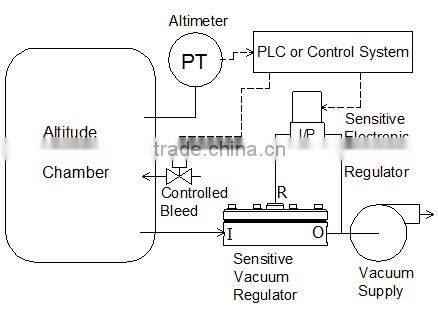

8. Vacuum pump sized for climb/dive rate required by application

We use PP Film wrapping the test chamber to protect the test chamber from moisture or being scratched first, then use strong plywood case for easyload and transport, and to keep the chambers from potential crash or impact.
