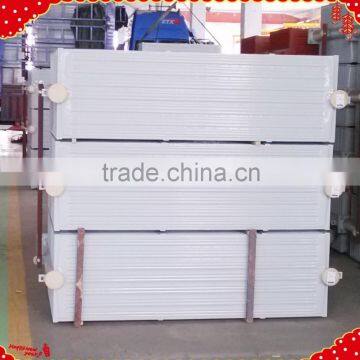

power transformer radiator fin with PC (PG) type radiator

  power transformer radiator fin with  PC (PG) type radiator

• About us---- Elolam Group :

Elolam Group,initiated and established by Shandong Elolam Electric Power Technology Company,is the short of Elolam Electric Group.

Elolam Group is in the business of designing, producing and selling of high magnetic oriented silicon steel,fold iron steel ,roll iron steel,cable ,transformer ,and switch.Eloam aims to provide all-round comprehensive supporting services for the  large power companies.

Eloalm Group successively established transformer manufacturing enterprises and

selling companies in the form of joint venture or cooperation in Africa,East, south

and west of Asia countries and regions .

Eloam Group therefore become a real multinational group enterprise in the power

transmission and transformation supporting industry.

                                         Elolam Group . Jiahua Electric Power Equipment Transformer Co.,ltd

•  Panel radiator performance description:

1,Product application:

Panel radiator is exclusive cooling device,which is mainly used to large,medium size power equipments,such as power transformer, reactor and so on. It can be connected on the flange of above mentioned power equipments or independently installed the neighbou ring support

2,Product components:

Panel radiator consists of radiating llecting pipe,gas relief(oil discharge)plug,rings,connecting plates and flange plates,etc

3,Product features:

The two ends of panel radiator adopt small angle to transit towards collecting pipe,which have advantages of smooth backflow,no dead-ends of oil collecting,no oil stain remain and beautifuI shape, etc. It adopt the design of 7 oiI ducts,each duct has 2 reinforced channels , which have advantages of strong fit,small stresses afte r welding and high strength,etc.

• Cooling Finned Radiator technical specification sheet:

•  Trade Terms:

1.Payment: 1) 30% in advance, balanced 70% to be paid before dispatch.       2) L/C

2.Port of loading: Qindao  Port, Tianjin Port , Ningbo Port and Shanghai Port

3. Delivery time:10-30 days according to order quantities.

• Other related accessories for oil immersed power transformer   :

                                                                  corrugated oil tank

                                    electromagnetic wire

                               S11 series 100kva  oil immersed power  transformer

              dry type transformer shell with green painting
