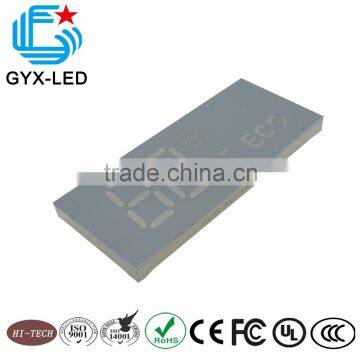

High-quality white color custom air conditioner digital LED display

FOB Price

US$ 2 - 6 / Piece

200 Pieces(Min. Order)

Port Shenzhen/Hongkong
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	GYX
Model Number	GYXS-SMG174	Usage	Indoor
Tube Chip Color	Other, white color	Display Function	Other, custom design
Pixels	Other	Screen Dimension	88mm*38mm

Product Description

Dimension

Product Description

GYX offers a full range of through hole and surface mount LED digital displays. Customers are free to choose chip on board (COB), chip bonding and wire bonding, epoxy type, SMD LED and air type,etc. The displays come either in industry standard size packages and pinouts or special designed per customer’s requirement.

Seven Segment Displays

Seven segment LED displays are used in numeric indicators on the display panels of instruments, meters, home appliances, and communications and computing equipment. Single, dual, triple and quad digit types in a wide range of colors are available.

Alphanumeric LED Displays

Alphanumeric LED displays can show both numerical digits and the letters of the alphabet. They feature high brightness, high contrast, and wide viewing angles. A wide range of colors is available.

IC Driver Built-in LED displays

IC driver built-in LED displays provide the best solution for indication and display panels in home appliances, computer products, telecommunications, industrial and medical equipment, and game consoles. They feature high brightness, high contrast, and wide viewing angles.

Graphic LED Displays

Graphic LED Displays provide high flexibility in mechanical design and high contrast performance. They are widely used in indication and display panels for home audio-video equipment and appliances such as DVD players, VCRs, microwave ovens, and conventional ovens.

Features and Benefits for Standard LED Digital Displays

Semiconductor (LED) light source

Cost-effective solutions
Flexibility for designers
Industry standard size and
pinout Light weight

Lower power consumption

Electrical power savings
Low heat generation
Low current devices available

Mechanically rugged

No wire filaments
No moving part
No sensitive to mechanical shock and vibration

Essentially monochromatic light

No color filter required
Easy for the eye to discern against distracting backgrounds in sunlight and adverse weather conditions
High light output

Industry standard size and pin out

Features and Benefits for Custom LED Digital Displays

Robust design for high reliability, longer life and hot and cold temperature operating capability

Ideally suited for industrial applications

Alphanumeric characters and custom icons for messaging

Useful for conveying operating modes, status, warning and error codes

Ability to flash or blink

Catch user’s attention

Available to built in LED driver

Simplified design interfacing reduces design cycle time

Emissive display with brightness control

Ability to modify brightness for subdued light environment and total darkness

Aesthetically pleasing

Distinctive display allows product differentiation

Product Details

General Information

Part No.	Chip Material	Emitting Color	Lens Type	Description
General	InGaAlP/GaN/InGaN	Red/ orange/yellow/green/ blue / purple.	Water clear/Diffused

Electrical / Optical Characteristics at TA=25ºC

Parameter	Symbol	Typ	Units	TestConditions
Forward Voltage	VF	/	V	IF=20mA
Peak Wavelength	λp	/	nm	IF=20mA
Dominate Wavelength	λD	/	nm	IF=20mA
Spectral Line Half-width	Δλ	/	nm	IF=20mA
Reverse Current	IR	/	uA	VR=5V

Absolute Maximum Ratings at TA=25ºC

Parameter	Symbo	Maximum Rating	Units
Power dissipation	Pd	70/90	mW
Forward Current	IF	30/30	mA
Peak Forward Current (1)	IF(Peak)	130	mA
Reverse Voltage	VR	5	V
Operating Temperature	Topr	-40ºC To +80ºC
Storage Temperature	Tstg	-40ºC To +80ºC
Lead Solder Temperature(2)	Tsol	260ºC for 3 seconds

Note:

1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 2mm below package base.

Application

Application for Standard LED Digital Displays

Temperature controllers
Test and measurement instrumentation
Power converters
Home appliance displays
Automotive and avionic instrumentation
Fuel pump displays
Digital panel meters
Cable set-top boxes
Electronics displays
Gaming machines
Point of sale terminals
Answering machines
Exercise equipment

Application for Custom LED Digital Displays

Industrial Equipment

Industrial ovens, reliability test equipment, analytical instruments, process control equipment, test and measuring instruments, temperature controllers, programmable logic controllers, security systems

Networking

Telecommunication equipment, answering machines, telephones, base stations, PBX modems, network cards

Outdoor Signs

Petrol pump meters

Consumer

Audio/video equipment, audio mixers, set top boxes, amplifiers, musical instruments, gaming machines, currency/coin counters, security systems

Consumer “White Goods”

Displays for washing machine digital panels, cookers, freezers and dishwashers

Medical Equipment

Hospital monitoring systems

Transportation

Displays, radar detectors, avionics displays

Computers and Peripherals

CPU speed indicator, printer front panels, fax machines, copy machines, power supply equipment, cash registers

Company Information

GYX Optoelectronics Co.,Ltd. was founded in 2000. It is an integrated high-tech company with dedication to R&D, production, quality, marketing and global customer service. And it is wholly owned subsidiary company of Han’s Laser Technology Industry Group Co., Ltd., which is a public company in China (china stock code:002008) with over 5 billion US dollar market value and around 6000 employees.

Known for its LEDs’ performance, efficiency and reliability, GYX offers an extensive portfolio of products that include SMD LED, Lamp LED, module solutions such as seven segment display, numeric display, alphanumeric display, pictorial display, graphic display, surface mounted display, dot-matrix display.The highly integrated customization capability of the GYX also enables the products to fit well to specific customer design needs, making the products unique to the customers’ applications.

These LEDs and display modules address a wide range of markets, including electronic signs and signals, home appliance( especially for air conditioner, washing machine, refrigerator, rice cooker, water boiler, humidifier, water purifier, air refresher), automotive, solid state lighting and LCD display backlighting.

LED solution customers can rely on products that deliver high reliability, long life expectancy, and are resistant to extreme weather conditions, mechanical vibration, and shock. With our innovative LED solution, customers can choose products with rich color capabilities, low cost, standard brightness and high ambient light that are designed to meet a variety of industrial and consumer applications.

GYX, all-round and competent LED solution partner.

Production line

With the ample support from Han’s Laser Technology Industry Group, GYX have introduced the most advanced production equipments and test facilities, such as automatic machines of die-bonding, wire-bonding, sorting, taping, epoxy coating and filling, high speed mounter, reflow soldering, wave soldering, advanced aging workshop, molding machine, 10,000 class clean room, air shower, LED oven, ESD test equipments, compact array spectrometer, thermal shock chamber, programmable temperature&humidity chamber, plasma cleaner, etc. Strict ESD control procedure and whole process monitoring guarantee the products’ high quality.

GYX has high volume capability, with 15000m² production area and thousands of the most advanced production equipments and test facilities, we can make the shortest lead time to fulfill our commitments to customers.

Quality Assurance

GYX is accredited with ISO 9001: 2008 and ISO 14001:2004 certification, all the products comply with the RoHS and REACH Directives. Quality is where value and respect begins. We aim to Provide the most optimal and best quality solutions through consistent and continuous improvement.With the help of full sets of labs equipment such as ESD test equipments, compact array spectrometer, thermal shock chamber, programmable temperature&humidity chamber, our professional quality control team guarantee the realiability of all the end products.

Trade Show

2015 Korea Electronic Show (KES, Oct.14th-17th) in Seoul

The Korean Electronic Show (Oct.14th-17th, 2015) present the modern and future electronic and IT industry of Korea. GYX is having the golden booth near Samsung, warmly welcome all the visitors.

2015 IFA (Sep.4th-9th) in Berlin

IFA (Sep.4th-9th, 2015)is the global trade show for consumer electronics and home appliances. GYX focus on the total LED solutions and have joined the show to impress global appliances manufacturers

2015 EDS (May 12th-14th ) in Las Vegas,USA

EDS is an important gathering of the movers, shakers and brightest minds that electronic component manufacturers, distributors and representatives have to offer. GYX have the honor to join this summit.

2015 LED China(Sep.16th -19th) in Shanghai

LED CHINA is the world's largest event dedicated to the entire LED industry supply chain and an one-stop platform to see finished LED products and components . GYX had the booth No. E18 in E2 Hall.

2015 China Information Technology Expo(CITE, Apr.10th-12th) in Shenzhen

China Information Technology Expo (CITE) is the largest and most comprehensive exhibition of electronics and information industry in China. GYX had the booth there to present to all the visitors.

2015 Electronica China(Mar.17th-19th) in Shanghai

electronica China takes place in conjunction with productronica China in Shanghai. It covers the electronics industry's entire value chain. GYX had the booth of 3762-3764 in Hall E3.

2015 Appliance&electronics World Expo(AWE, Mar.11th-14th) in Shanghai

With global attention and the stably-developed household appliance consumer market, AWE has become one of the world's 3 biggest exhibitions in this area. GYX had the booth of 2A14-2A15 in Hall W2
