Product Details
| Condition | New | CNC or Not | CNC | |
| Place of Origin | Shandong, China | Brand Name | BLUE ELEPHANT | |
| Model Number | ELE2050 | Voltage | AC380V,3PH,50/60Hz | |
| Power(W) | 14kw | Dimension(L*W*H) | 5000*2800*2450mm | |
| Weight | 2500KG | Certification | CE ISO9001 | |
| Warranty | 12 Months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

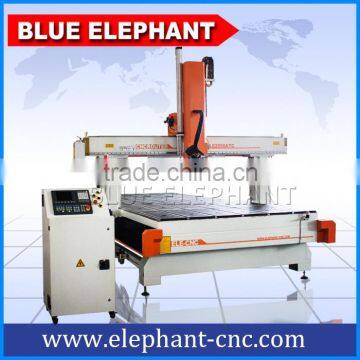

China Jinan 2050 3d 4 axis cnc router , cnc atc carving machine , engraving router
Features of atc cnc router 2050:
- Air cooling spindle----9 KW Italy HSD atc air cooling spindle.Well-known brands ,long working life,low noise,strong cutting ability to ensure the long time working.
- Taiwan SYNTEC 4 axis control system----Easy operation. Support offline operation,more table.
- 850w Japan YASKAWA servo motor----High-performance drive motor to ensure that the machines high speed and accuracy.
- HIWIN linear rail 25# from Taiwan ----Smooth and precise transmission,low noise,and lifetime is 10 times longer than common rail way.
- Vacuum & T-slot combined worktable----Can both absorb big materials by vacuum power and fix small materials by clamps. There is MDF boardon it for protection.
- Helical rack transmission----Ensure fast speed,big loading capacity,strong power,long lifetime, and it ensures the machine more stable.
- Carrousel Tool Magazine---- With 12 ISO30 tool holders and 8 tool forks,can save working time and will work so convenient. Can also choice the 6 or 10 tool holders and forks.
- Y axis is with dustproof, Protect the machine cleaner and easy to clean up.
Techinical Parameters of atc cnc router 2050:
Descriptions | Parameters |
Working Size | 2000*5000*600mm(Can be customized) |
Traveling Positioning Accuracy | ±0.03/300mm |
Repositioning Accuracy | ±0.03mm |
Spindle Power | 9KW Italy HSD ATC air cooling spindle |
Spindle Speed | 24000RPM |
X, Y axis | Helical rack, Hiwin 25# Rail Linear Bearing |
Z axis | Hiwin Rail 25# Linear Bearing & TBI Ball Screw |
Max. Rapid Travel Rate | 40000mm/min |
Max. Working Speed | 25000mm/min |
Servo motor | 850w YASKAWA |
Control System | Taiwan SYNTEC 4 axis control system |
Table | T-slot & vacuum Table |
Frame | Welded Structure |
Servo driver | 850w YASKAWA |
Collet | ISO30 |
X,Y Resolution | <0.01mm |
Software Compatibility | Type3/UcancameV9/Artcam Software |
Running Environment Temperature | 0 - 45 Centigrade |
Relative Humidity | 30% - 75% |
Optional parts | 7.5kw Tongyou vacuum pump 1.5kw new type dust colleator Reducer(Japan shimpo or Germany Eisele) |
PS:All the working area and specifications can be customized according to your requests.
Product Details of atc cnc router 2050:
Packaging & Delivery:
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 20 working days after payment.
