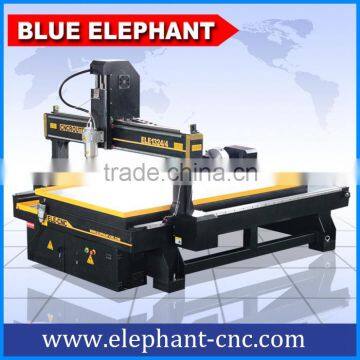

ELE 1324 Chinese machine 4 axis 3d carving cnc router machine with rotary device for wood engraving
- Qingdao Tianjin etc.
- T/T D/P D/A Credit Card PayPal
You May Like
-
tiger legs engraving 1325 cnc wood router for furnitures
-
hot selling cnc router bits for wood,stone,metal
-
DX1530 4 axis atc wood cnc router with rotary device for wood engraving
-
4 axis cnc rotary wood router cnc , 0809 cnc rotary wood lathe , cnc machines rotary 4 axis
-
DX 1530 4 axis cnc router , 4th axis cnc foam cutting machine, wood engraving machine for sale
-
ELE 0809 3d wood carving cnc router with rotary , cnc router engraving machine multi rotary
Product Details
| Condition | New | CNC or Not | CNC | |
| Place of Origin | Shandong, China | Brand Name | BLUE ELEPHANT | |
| Model Number | ELE1324 | Voltage | AC380V/3PH/50HZ(220v for optional) | |
| Power(W) | 10kw | Dimension(L*W*H) | 3700*2140*1850mm | |
| Weight | 1500kg | Certification | CE ISO9001 | |
| Warranty | 12 Months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
ELE 1324 Chinese machine 4 axis 3d carving cnc router machine with rotary device for wood engraving
Advantage of 1324 4 axis cnc router:
- DSP A18 4 axis control ststem
- Well suitable for processing stone ,wood
- The diameter of rotary axis is 300mm
- The sink table of rotary device is made of stainless steel
- Z axis is 400mm,Processing different materials
Parameters of 1324 4 axis cnc router:
Description | Parameter |
X,Y,Z Working Area | 1300x2500x400mm |
X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
X,Y,Z Repositioning Accuracy | ±0.03mm |
Table Surface | T-slot Table |
Frame | Welded Structure |
X, Y Structure | #20 HINWIN linear guide,helical rack |
Z Structure | Hiwin Rail Linear guide and Ball Screw |
Max. Power Consumption | (Without Spindle) 2.5kw~3Kw |
Max. Rapid Travel Rate | 33000mm/min |
Max. Working Speed | 25000mm/min |
Spindle Power | 5.5 KW |
Spindle Speed | 0-24000RPM |
Drive Motors | YASKAWA |
Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
Command Language | G Code |
Operating System | DSP A18 4 axis control system |
Computer Interface | USB |
Flash Memory | 128M(U Disk) |
Collet | ER25 |
X,Y Resolution | <0.01mm |
Software Compatibility | Type3/UcancameV9 Software, (Option: Artcam Software) |
Running Environment Temperature | 0 - 45 Centigrade |
Relative Humidity | 30% - 75% |
PS:All the working area and specifications can be customized according to your requests.
Features of 1324 4 axis cnc router:
- 1300*2500*400mm working area.
- 300mm rotary axis for cylinder wood stone carving.
- 5.5 kw Changsheng water cooling spindle.
- 5.5 kw Taiwan Delta Inverter.
- DSP A18 control system support 4 axis working.
- 1 kw Japan YASKAWA drive and motor.
Product Details of 1324 4 axis cnc router:
Machinery Parts of 1324 4 axis cnc router:
Applications of 1324 4 axis cnc router:
- Wood furniture industry:Wave plate,fine pattern,antique furniture,wooden door,screen,craft sash,composite gates,cupboard doors,interior doors,sofa legs,headboards and so on.
- Advertising industry:Advertising indentification,sign making,acrylic engraving and cutting,crystal word making,blaster molding,and other advertising materials derivatives making.
- Die industry:A sculpture of copper,aluminum,iron and other metal molds,as well as artificial marble,sand,plastic sheeting,PVC pipe,wooden planjs and other non-metallic mold.
- Relief sculpture and 3D engraving
- Stone,Cylindrical object
Samples:
Our Service:
1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.
Packaging & Delivery:
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment.
Jinan Dexian Machinery Co.,Ltd
---10 years factory experience
---Professional CNC machinery manufacturer
---very professionally produce 3 axis,4 axis, 5 axis, ATC cnc router,laser cutting machine
---The price will be 20% off in 2016
Looking forward for the agents from all over the world! Welcome to contact us!
