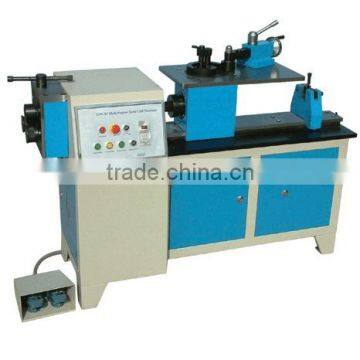

TDW 30 Mutil-Functional Metal Shaper
- Tianjin
You May Like
Product Details
| Place of Origin | Beijing, China | Brand Name | MF | |
| Model Number | TDW-30 |
Product Description
Specifications
Metal shaperFor circling,
Scroll forming
Twisting
CE certificate

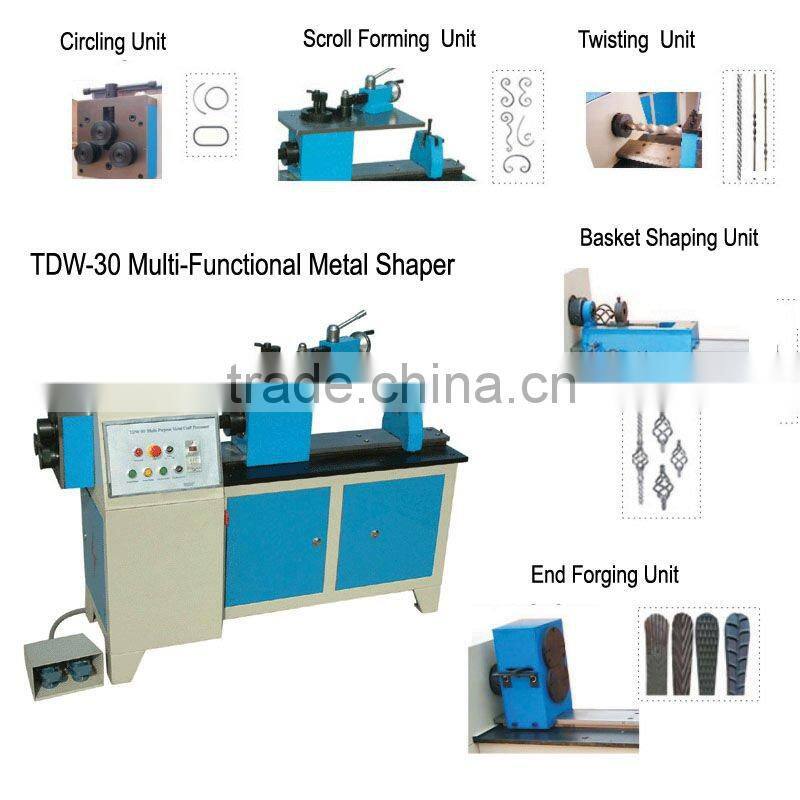

1.The Model TDW-30 multi-functional wrought iron machine is an equipment specially designed and manufactured for small size wrought iron processing factory by us, it can be used in circling, scroll forming and twisting,
2. Such machine can also be equipped with the lantern auxiliary unit manufactured by our factory to twist lantern (birdcage) or the fishtail auxiliary unit to coin fishtail pattern.
3.With multi-purpose, easy installation & demounting, smooth driving, simple operation and low cost, this machine is the most ideal choice for small size wrought iron processing factory.
Item | Technical parameters and capacities | ||
Materials | Low carbon metal (tensile strength ≤235z/2) | ||
Processing Capacities (mm) | Forming | Flat steel | 30×5 |
Round steel | Φ12 | ||
Square steel | 12×12 | ||
Twisting | Square steel | 20×20 | |
Flat steel | 30×10 | ||
Scrolling | Round tube | Φ30×1 | |
Square pipe | 30×30×1 | ||
Rectangular pipe | 30×8 | ||
The rotation speed of the main shaft | 12rpm | ||
The height between the shaft and lead-rail | 148 | ||
Dimension of the work-platform | 1000×400 | ||
The cyclical pin-wheel hight-differential-rotation- ratio motor | Power | 1.1kw | |
Rotating-speed | 910rpm | ||
Voltage | 380v | ||
Frequency | 50HZ | ||
External Dimension (mm) | 1560×570×1210 mm | ||
Packing Dimension (mm) | 1690×650×1320 mm | ||
Net Weight (kg) | 512 kg | ||
Gross Weight (kg) | 560 kg | ||
