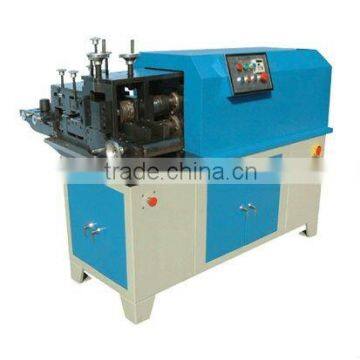

TYH 60 Embossing Machine
- Tianjin
You May Like
Product Details
| Place of Origin | Beijing, China | Brand Name | MF | |
| Model Number | TYH-60 |
Product Description
Specifications
Embossing Machine(TYH-60)Special embossing machine for cold pressing production of wrought iron materials
CE Certificate

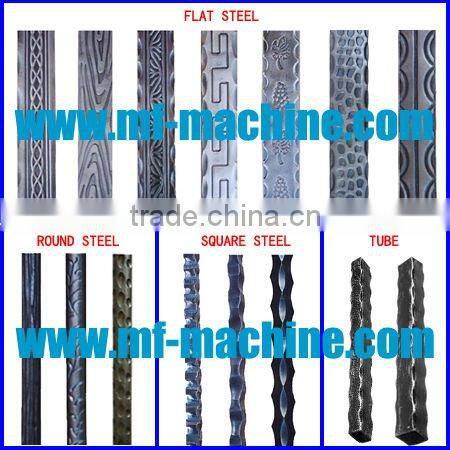

1.Embossing Machines are the special equipment for cold pressing production of wrought iron materials (forged iron materials), which adopt imported inverter technique with high bearing capacity and various mold patterns and are equipped with different patterns of so as to roll form different patterns on flat steel, square steel, round steel, square pipe and special pipe of certain specifications.
2.There are two models for embossing machine, Model TYH-100 is oversize equipment with higher processing capacity than Model TYH-60, thus TYH-100 can roll form 100×100mm square pipe and special pipe into upright stanchion so as to achieve the high efficiency and energy saving effect.
Items | Model TYH-60 Processing Capacities | Model TYH-100 Processing Capacities | |
Processing Capacities | Flat Steel | 12×3 to 60×10 mm | 12×3 to 100×10 mm |
Square Steel | 10×10 to 25×25 mm | 10×10 to 30×30 mm | |
Round Steel | Φ10 to Φ20 mm | Φ10 to Φ30 mm | |
Square Tube | 15×15 to 60×60 mm | 15×15 to 100×100 mm | |
Rectangular Steel Pipe | 15×20 to 60×40mm | 15×20 to 100×80 mm | |
Motor | Electricity: 380V 50HZ | ||
Power: 7.5kw | |||
Rotating Speed: 1500r/min | |||
Decelerator for Cycloidal Pin wheel | Out put rotation speed of main shaft:35r/min | ||
Gear Ration: 1:43 | |||
Adopting frequency acceleration technology introduced from abroad; | |||
External Size (L×W×H) | 1700×1150×1260 mm | 1700×1500×1460 mm | |
Packing Size (L×W×H) | 1840×950×1400 mm | 1880×1080×1410 mm | |
Net Weight (kg) | 1098 kg | 1260 kg | |
Gross Weight (kg) | 1260 kg | 1380 kg | |
