2015 High Quality 1310nm CATV Optical Node Transmitter
- SHANGHAI NINGBO SHENZHEN
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | ERIC | |
| Model Number | ETX1314 |
Product Description

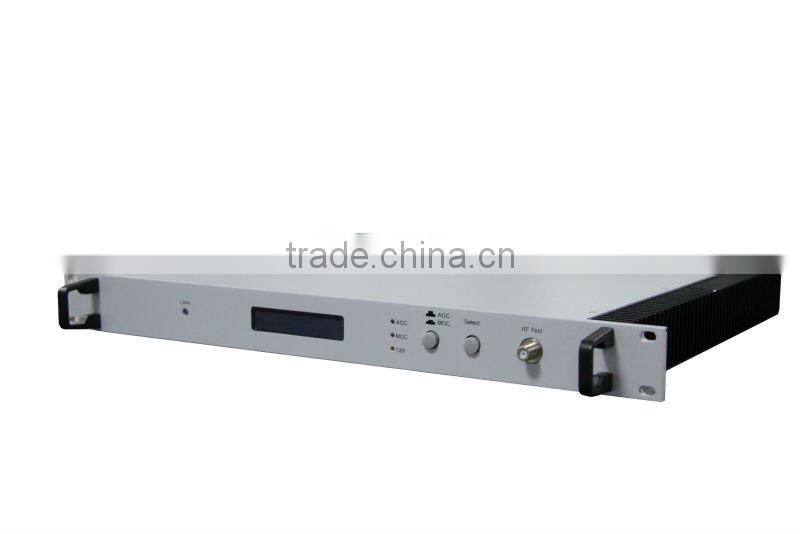

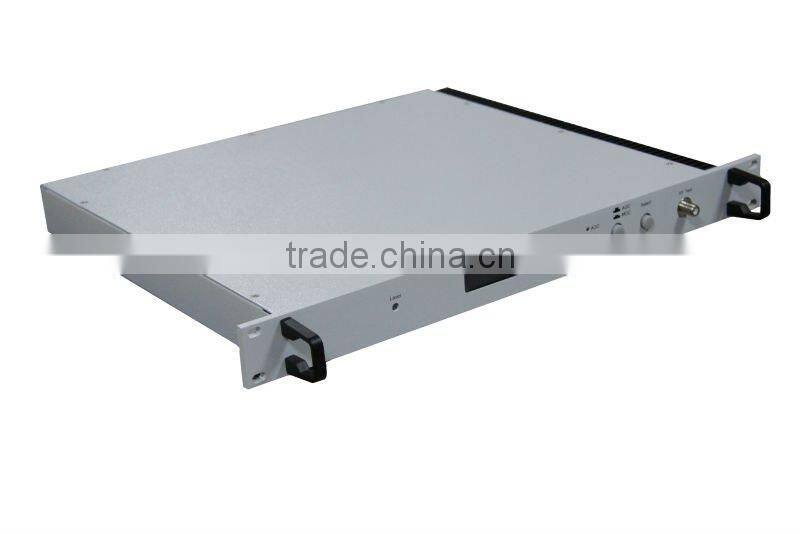

2015 High Quality 1310nm CATV Optical Node Transmitter
ETX1300 series 1310nm optical transmitter adopts famous brand high linearity DFB laser, and builds-in perfect pre-distortion adjustment circuit. The internal micro-processor software has many functions such as laser monitoring, number display, trouble alarm and online management. Once the working parameter fo the laser is out of the fixed range, there will be a red light glistening to alarm.
Features
1) The transmitting modules of this machine adopt the imported DFB laser (several brand option).
2) The internal RF driving amplifier and controlling circuit of this machine can ensure the best C/N. The perfect and stable circuit of optic power output and controlling circuit of thermolectric refrigeration device of laser module assure the user the best quality and stable working for a long time.
3) The internal micro-processor software has many functions such as laser monitoring, number display, trouble alarm and online management. Once the working parameter fo the laser is out of the fixed range, there will be a red light glistening to alarm.
4) The RS-232 standard connector makes it possible to manage on line and monitor in another place.
5) The machine adopts 19”standard shelf and it can work with the voltage from 110V to 254V.
Parameters
Model(ETX13) | 02 | 04 | 06 | 08 | 10 | 12 | 14 | 16 | 18 | 20 |
Optic Power (mW) | ≥02 | ≥04 | ≥06 | ≥08 | ≥10 | ≥12 | ≥14 | ≥16 | ≥18 | ≥20 |
Optic Power (dBm) | 3.0 | 6.0 | 7.8 | 9.0 | 10.0 | 10.8 | 11.5 | 12.0 | 12.3 | 12.8 |
Optic Wavelength (nm) | 1290~1310 | |||||||||
Fiber Connector | FC/APC,SC/APC,SC/UPC (Selected by the Customer) | |||||||||
Working Bandwidth (MHz) | 45~860 | |||||||||
Channels | 59 | |||||||||
CNR (dB) | 51 | |||||||||
CTB (dBc) | ≤-65 | |||||||||
CSO (dBc) | ≤-60 | |||||||||
RF Input Level (dBμV) | Not with pre-distortion | 78±5 | ||||||||
With pre-distortion | 83±5 | |||||||||
Band Unflatness | ≤0.75 | |||||||||
Power Consumption (W) | ≤30 | |||||||||
Power Voltage (V) | 220V(110~254) | |||||||||
Working Tem (℃) | 0~45 | |||||||||
Specification | 19"×15"×1.75" | |||||||||
Diagram
Our Services
1.Any inquiries will be replied within 24hours
2.Professional manufacturer.
3.OEM/ODM avaliable:
1)Silk print logo on the front panel
2)Customized Color box
3)Customized housing
4)Any your idea on our equipments we can help you to design and put it into production
4.High quality, fashion designs, reasonable and competitive price, fast lead time
5.After-sale service:
1)All products will have been strictly quality checked in house before packing

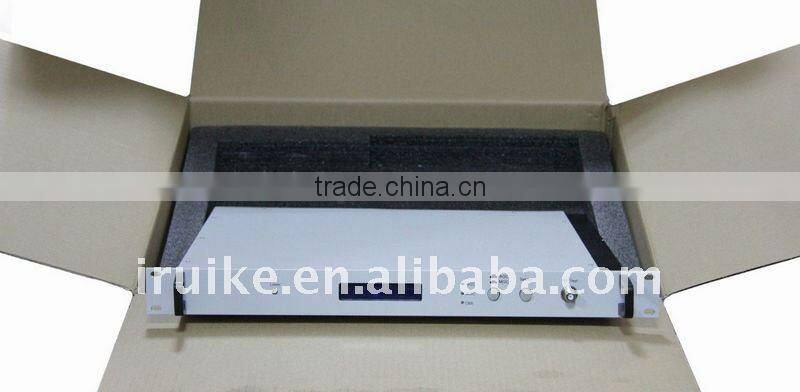

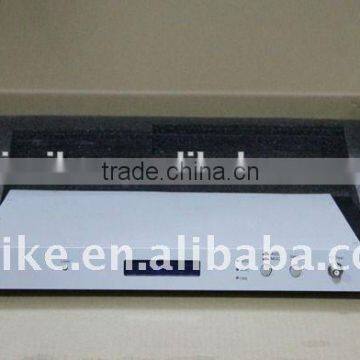

2)All products will be well packed before shipping
