Ortel/AOI Laser 1310nm 2mw Optical Transmitter ETX1302
- shanghai /shenzhen /ningbo
- T/T L/C D/P D/A Credit Card
You May Like
-
Eric 1550 Direct Optical Transmitter/Optical Transmitter Price
-
Eric 1550nm Optical Transmitter in Fiber Optic Equipment
-
1310nm Fiber Optic Transmitter/Fiber Optic Transmitter
-
1550nm External Modulation Long Range Optical Transmitter
-
1310nm Optical Transmitter ETX1324
-
Ali High Quality Optical Transmitters 1310nm
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Eric | |
| Model Number | ETX1302 |
Product Description
2mW 1310nm Ortel/AOI Laser Optical Transmitter ETX1328
Product description
ETX1300 series 1310nm optical transmitter adopts famous brand high linearity DFB laser, and build-in perfect pre-distortion adjustment circuit. The internal micro-processor software has many functions such as laser monitoring, number display, trouble alarm and on-line management. Once the working parameter of the laser is out of the fixed range, there will be a red light glistening to alarm.
Features
1). The transmitting modules of this machine adopt the imported DFB laser (several brand option).
2).The internal RF driving amplifier and controlling circuit of this machine can ensure the best C/N. The perfect and stable circuit of optic power output and controlling circuit of thermoelectric refrigeration device of laser module assure the user the best quality and stable working for a long time.
3). The internal microprocessor software has many functions such as laser monitoring ,number display ,trouble alarm and online management.Once the working parameter of the laser is out of the fixed range ,there will be a red light glistening to alarm .
4). The RS-232 standard connector makes it is possible to manage on line and monitor in another place.
5). The machine adopts 19”standard shelf and it can work with the voltage from 110V to 254V.
Parameters
Model(ETX13) | 02 | 04 | 06 | 08 | 10 | 12 | 14 | 16 | 18 | 20 |
Optic Power (mW) | ≥02 | ≥04 | ≥06 | ≥08 | ≥10 | ≥12 | ≥14 | ≥16 | ≥18 | ≥20 |
Optic Power (dBm) | 3.0 | 6.0 | 7.8 | 9.0 | 10.0 | 10.8 | 11.5 | 12.0 | 12.3 | 12.8 |
Optic Wavelength (nm) | 1290~1310 | |||||||||
Fiber Connector | FC/APC,SC/APC,SC/UPC (Selected by the Customer) | |||||||||
Working Bandwidth (MHz) | 45~860 | |||||||||
Channels | 59 | |||||||||
CNR (dB) | 51 | |||||||||
CTB (dBc) | ≤-65 | |||||||||
CSO (dBc) | ≤-60 | |||||||||
RF Input Level (dBμV) | Not with pre-distortion | 78±5 | ||||||||
With pre-distortion | 83±5 | |||||||||
Band Unflatness | ≤0.75 | |||||||||
Power Consumption (W) | ≤30 | |||||||||
Power Voltage (V) | 220V(110~254) | |||||||||
Working Tem (°C) | 0~45 | |||||||||
Specification | 19"×15"×1.75" | |||||||||

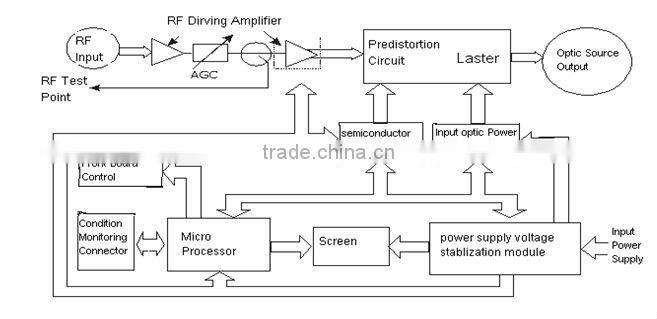

Diagram
